DG834G Reference Manual
Virtual Private Networking 8-33
v3.0, September 2005
2. Open the DG834G management interface and click on VPN Policies to get the VPN Policies
screen (Figure 8-37).

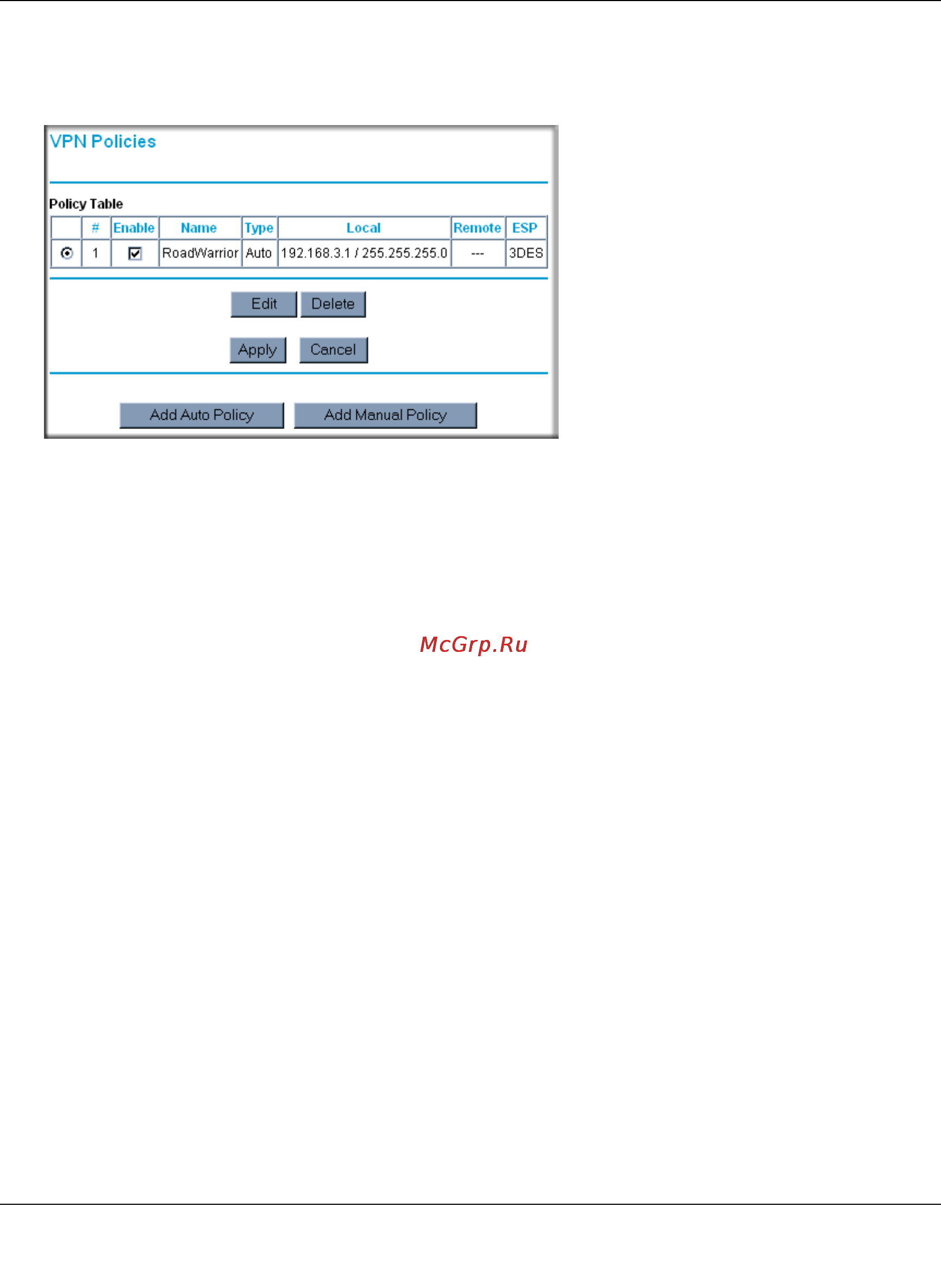

Figure 8-36: VPN Policies
3. Clear the Enable check box for the VPN tunnel you want to deactivate and click Apply. (To
reactivate the tunnel, check the Enable box and click Apply.)
Using the VPN Status Page to Deactivate a VPN Tunnel
To use the VPN Status page to deactivate a VPN tunnel, perform the following steps:
1. Log in to the ADSL Modem Router.
