DG834G Reference Manual
Managing Your Network 6-7
v3.0, September 2005

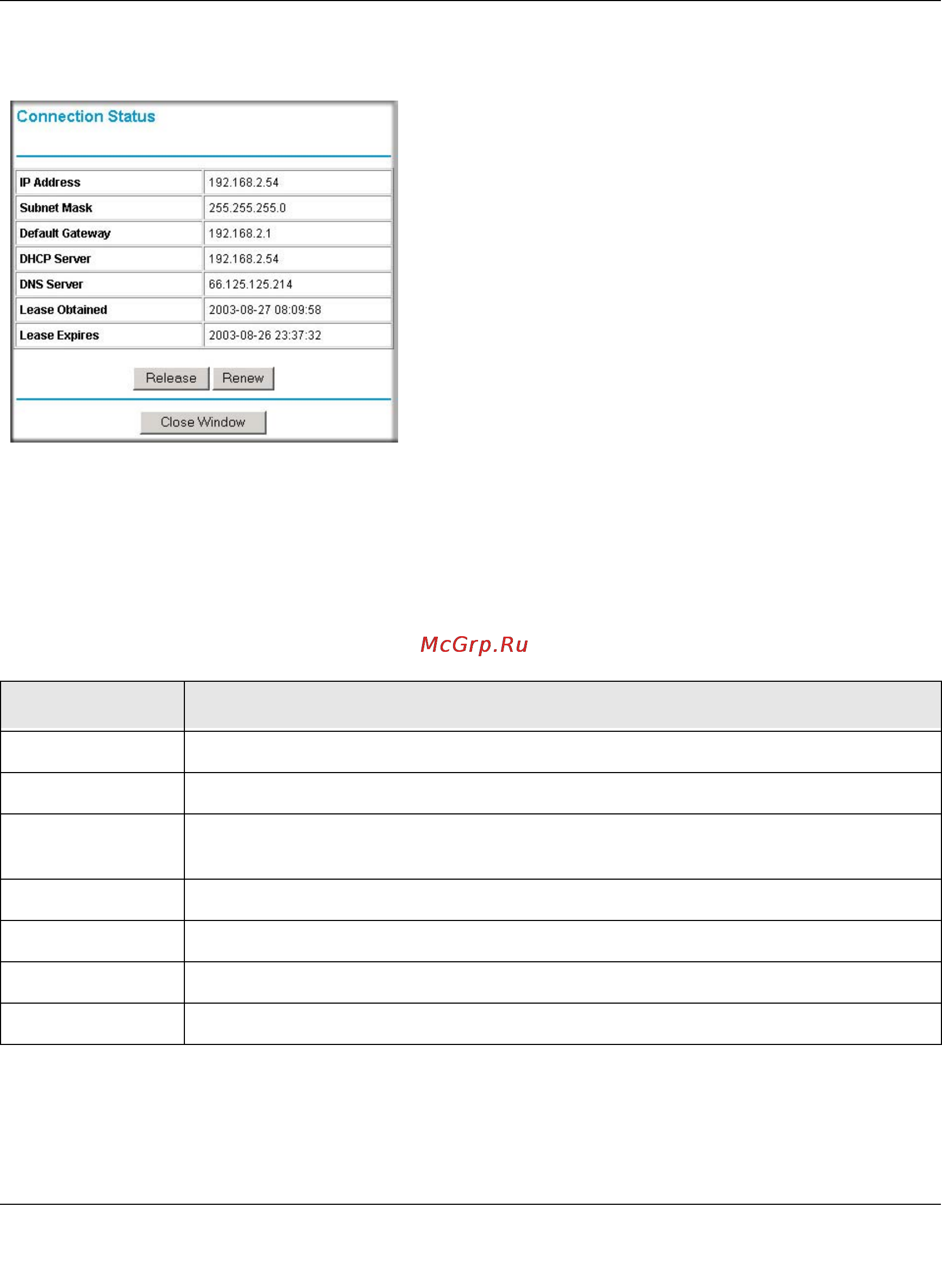

Click the Connection Status button to display ADSL modem router connection status, as shown.
Clicking the Renew button updates the status information.
This screen shows the following statistics:
Figure 6-5
Table 6-1. Connection Status Fields for Dynamic IP
Field Description
IP Address The IP Address assigned to the WAN port by the ADSL Internet Service Provider.
Subnet Mask The Network Mask assigned to the WAN port by the ADSL Internet Service Provider.
Default Gateway The default gateway ADSL modem router assigned to the WAN port by the ADSL
Internet Service Provider.
DHCP Server The DHCP server’s IP address.
DNS Server The DNS server’s IP address.
Lease Obtained Date and time the lease was obtained.
Lease Expires Date and time the lease expires.
