DG834G Reference Manual
C-8 NETGEAR VPN Configuration
v3.0, September 2005

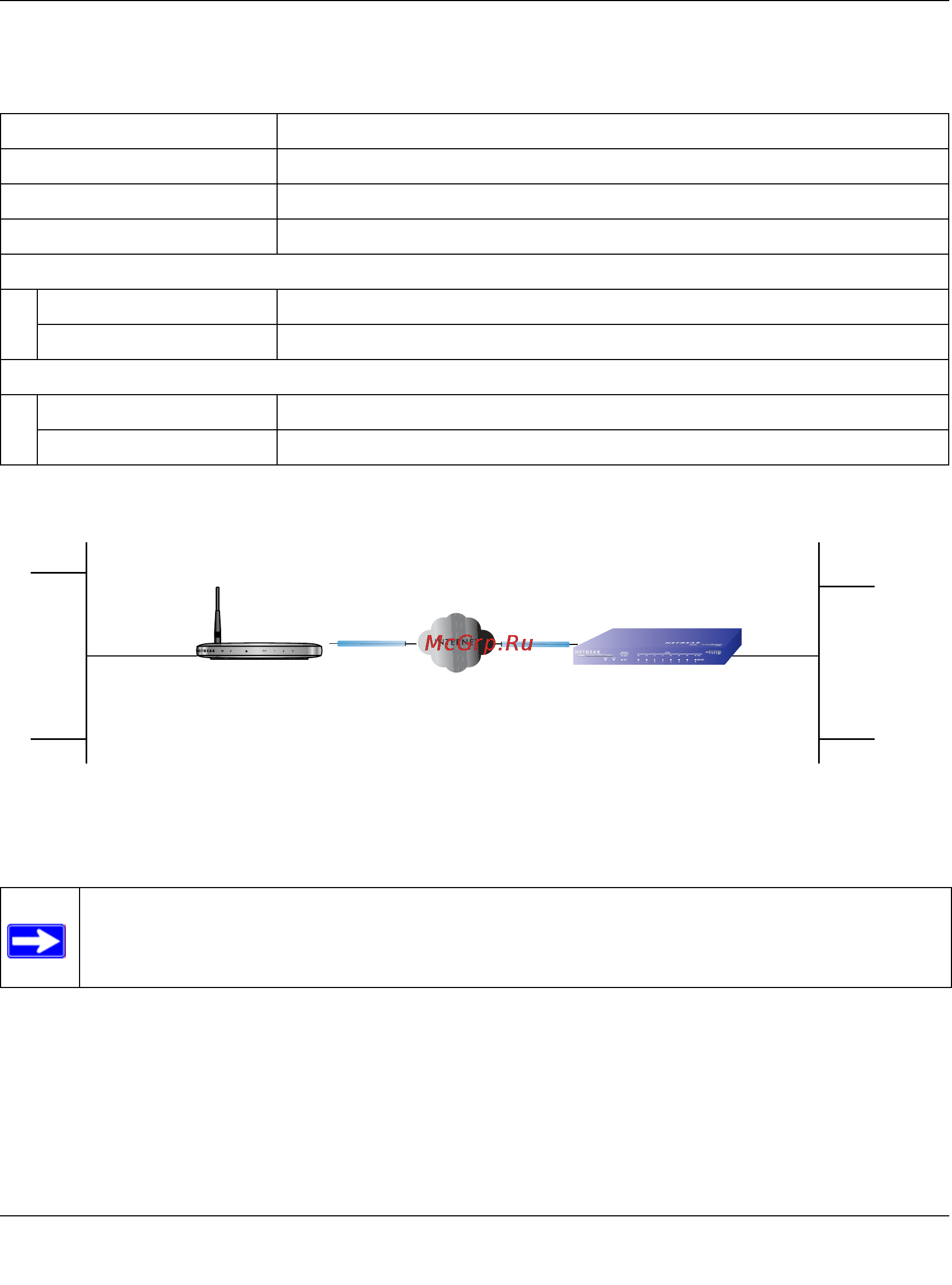

Figure C-5: Addressing and Subnet Used for Examples
The Use of a Fully Qualified Domain Name (FQDN)
Many ISPs (Internet Service Providers) provide connectivity to their customers using dynamic
instead of static IP addressing. This means that a user’s IP address does not remain constant over
time which presents a challenge for gateways attempting to establish VPN connectivity.
Table C-1. Profile Summary
VPN Consortium Scenario: Scenario 1
Type of VPN LAN-to-LAN or Gateway-to-Gateway (not PC/Client-to-Gateway)
Security Scheme: IKE with Preshared Secret/Key (not Certificate-based)
Date Tested: June 2004
Model/Firmware Tested:
NETGEAR-Gateway A DG834G firmware version V2.10.17
NETGEAR-Gateway B FVL328 with firmware version V2.0_07
IP Addressing:
NETGEAR-Gateway A Fully Qualified Domain Name (FQDN)
NETGEAR-Gateway B FDQN
Note: Product updates are available on the NETGEAR, Inc. web site at
http://kbserver.netgear.com/DG834G.asp.
Gateway A
fvl328.dyndns.org
dg834g.dyndns.org
10.5.6.0/24 172.23.9.0/24
172.23.9.110.5.6.1
WAN IP
WAN IP
LAN IPLAN IP
Gateway B
VPNC Example
Network Interface Addressing
DG834G
FVL328
(FQDN)
(FQDN)
