DG834G Reference Manual
C-28 NETGEAR VPN Configuration
v3.0, September 2005
Viewing the VPN Router’s VPN Status and Log Information
To view information on the status of the VPN client connection, open the VPN router’s VPN
Status screen by following the steps below:
1. To view this screen, click the Router Status link of the VPN router’s main menu, then click
the VPN Status button. The VPN Status/Log screen for a connection is shown below:

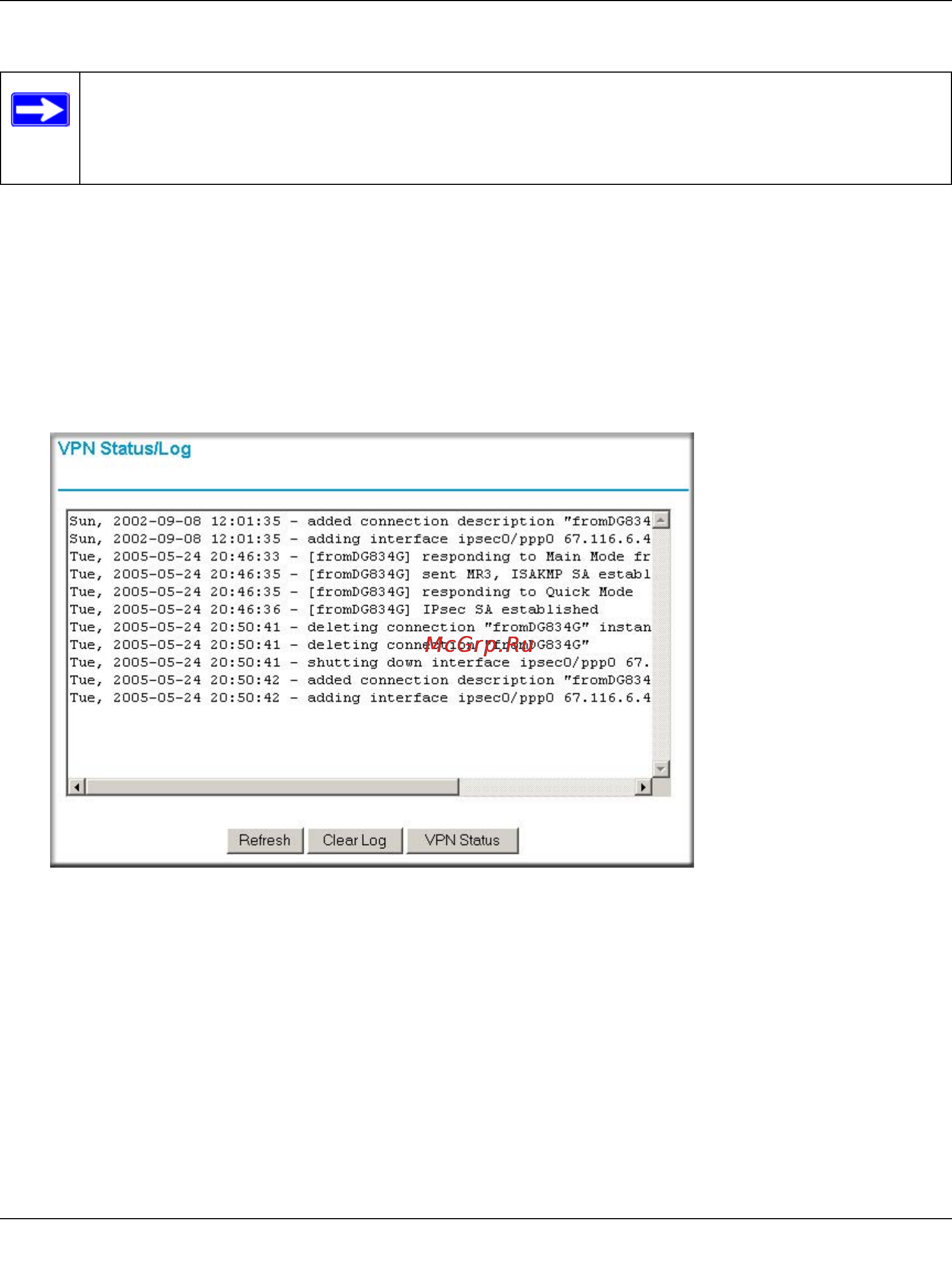

Figure C-26: VPN Status/Log screen
2.
To view the VPN tunnels status, click the VPN Status link on the right side of the main menu.
Note: While your PC is connected to a remote LAN through a VPN, you might not have
normal Internet access. If this is the case, you will need to close the VPN connection in
order to have normal Internet access.
