DG834G Reference Manual
Virtual Private Networking 8-27
v3.0, September 2005

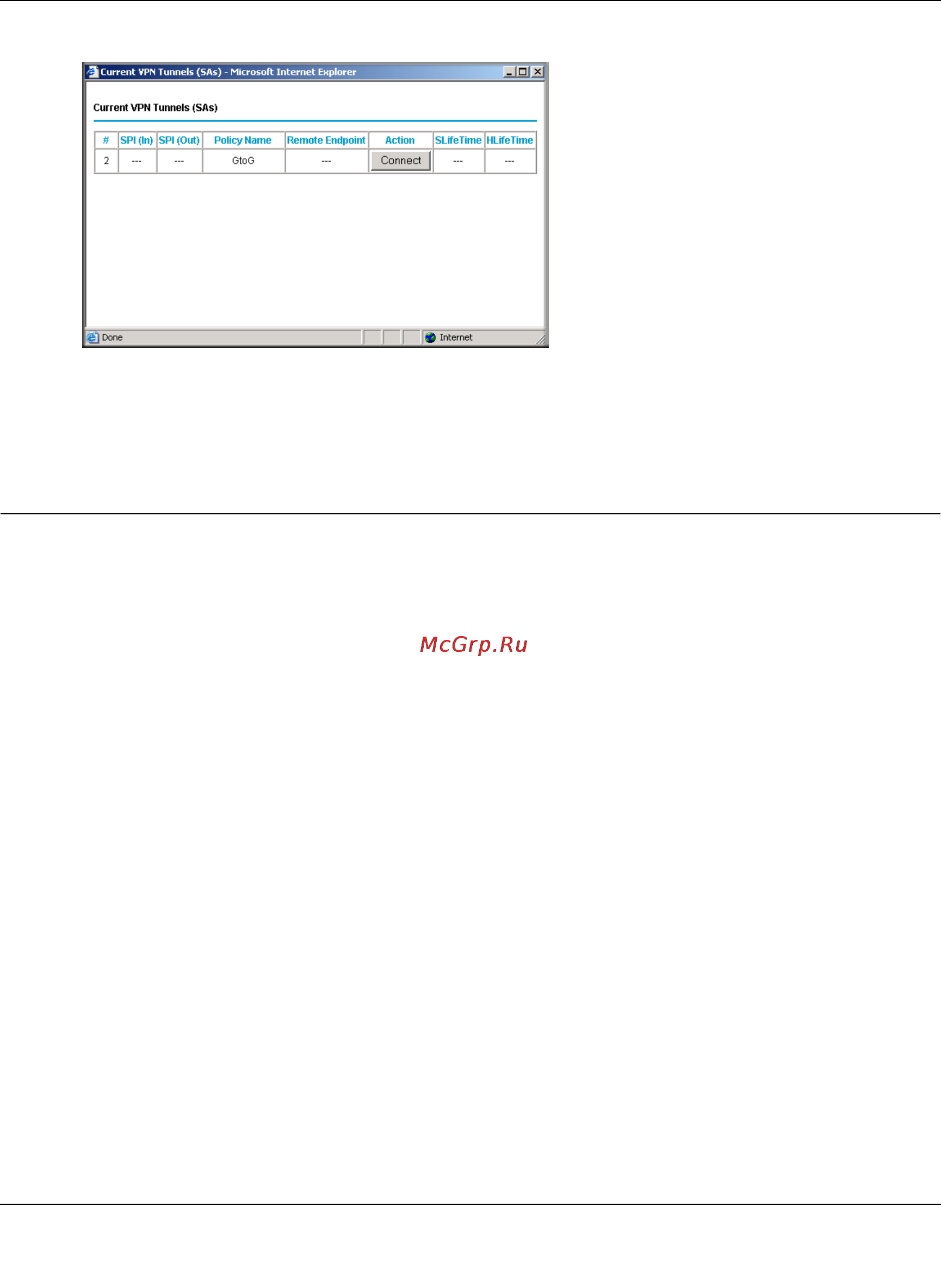

Figure 8-28: Current VPN Tunnels (SAs) Screen
c. Look at the VPN Status/Log screen (Figure 8-27) to verify that the tunnel is connected.
VPN Tunnel Control
Activating a VPN Tunnel
There are three ways to activate a VPN tunnel:
• Use the VPN Status page.
• Activate the VPN tunnel by pinging the remote endpoint.
• Start using the VPN tunnel.
Note: Refer to “Using Auto Policy to Configure VPN Tunnels” on page -36 to enable the IKE
keepalive capability on an existing VPN tunnel.
Using the VPN Status Page to Activate a VPN Tunnel
To use the VPN Status screen to activate a VPN tunnel, perform the following steps:
1. Log in to the ADSL Modem Router.
