DG834G Reference Manual
8-28 Virtual Private Networking
v3.0, September 2005
2. Open the DG834G management interface and click on VPN Status to get the VPN Status/Log
screen (Figure 8-29).

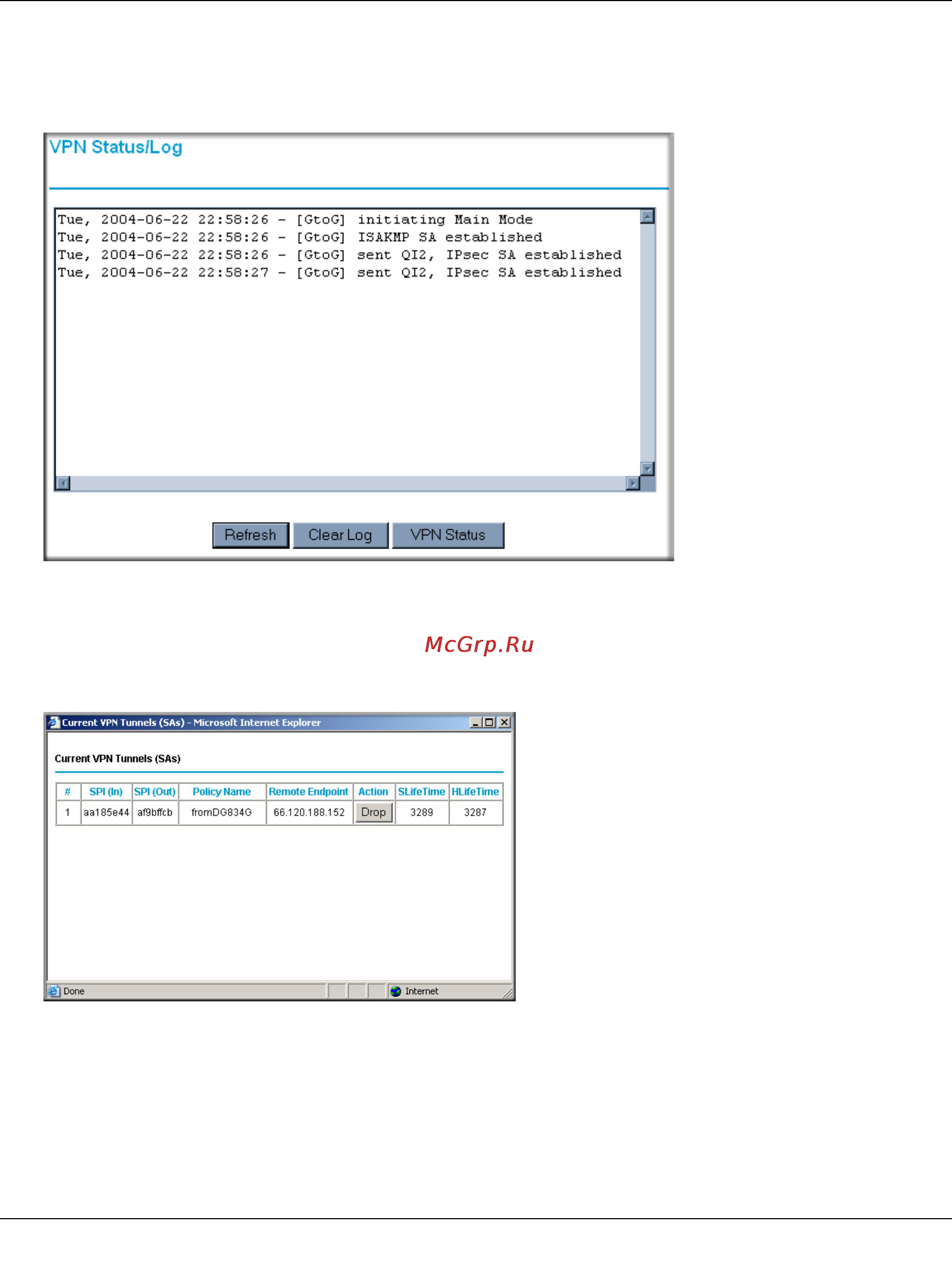

Figure 8-29: VPN Status/Log Screen
3. Click on VPN Status (Figure 8-29) to get the Current VPN Tunnels (SAs) screen
(Figure 8-30). Click on Connect for the VPN tunnel you want to activate.
Figure 8-30: Current VPN Tunnels (SAs) Screen
Activate the VPN Tunnel by Pinging the Remote Endpoint
Note: This section uses 192.168.3.1 for an example remote endpoint LAN IP address.
