DG834G Reference Manual
C-2 NETGEAR VPN Configuration
v3.0, September 2005

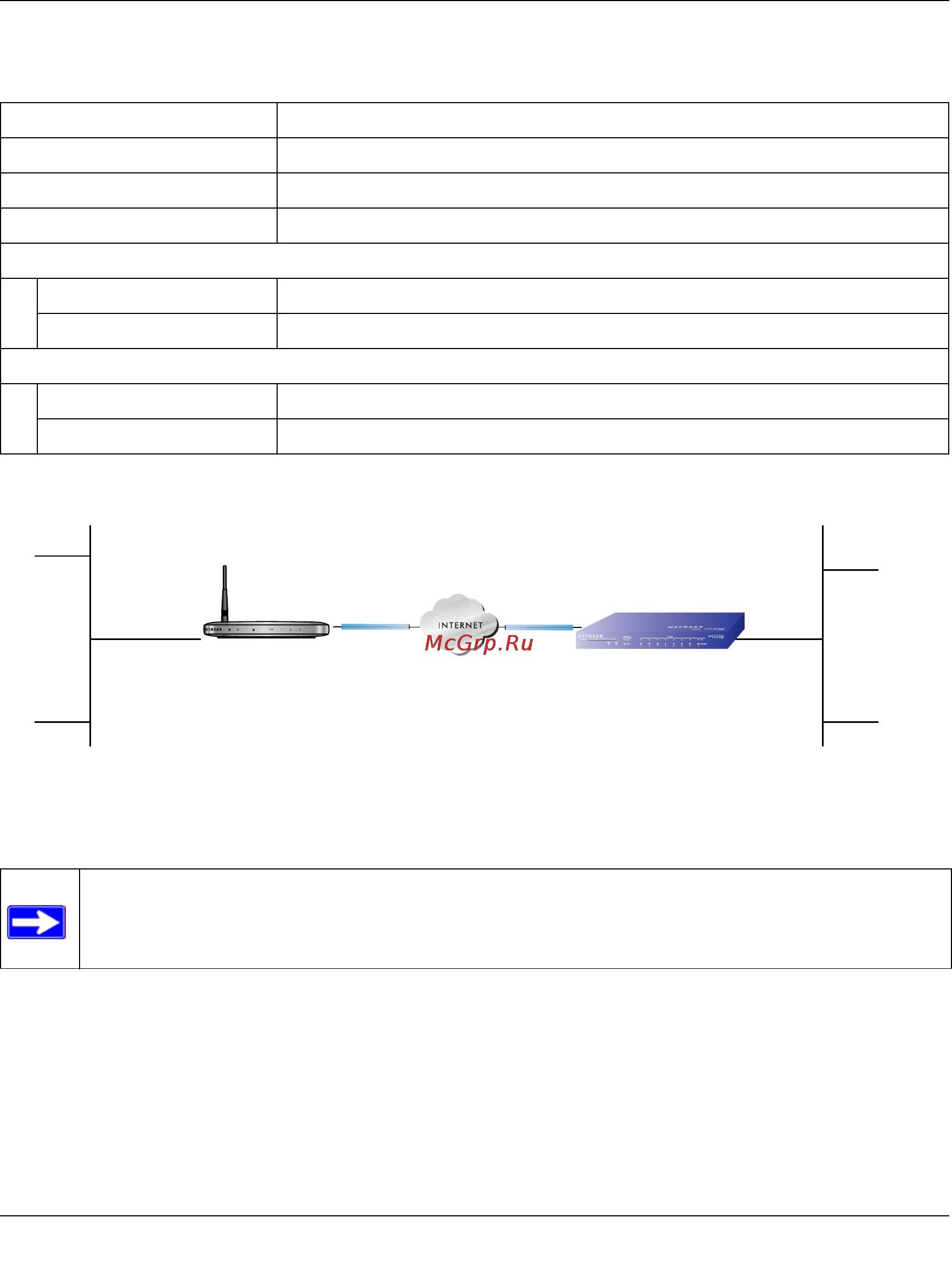

Figure C-1: Addressing and Subnet Used for Examples
Step-By-Step Configuration
1. Configure the DG834G as in the Gateway-to-Gateway procedures using the VPN Wizard (see
“How to Set Up a Gateway-to-Gateway VPN Configuration“ on page -20), being certain to
use appropriate network addresses for the environment.
Table C-1. Profile Summary
VPN Consortium Scenario: Scenario 1
Type of VPN LAN-to-LAN or Gateway-to-Gateway (not PC/Client-to-Gateway)
Security Scheme: IKE with Preshared Secret/Key (not Certificate-based)
Date Tested: June 2004
Model/Firmware Tested:
NETGEAR-Gateway A DG834G firmware version V2.10.17
NETGEAR-Gateway B FVL328 with firmware version V2.0_07
IP Addressing:
NETGEAR-Gateway A Static IP address
NETGEAR-Gateway B Static IP address
Note: Product updates are available on the NETGEAR, Inc. web site at
http://kbserver.netgear.com/DG834G.asp.
Gateway A
22.23.24.25
14.15.16.17
10.5.6.0/24 172.23.9.0/24
172.23.9.110.5.6.1
WAN IP
WAN IP
LAN IPLAN IP
Gateway B
VPNC Example
Network Interface Addressing
DG834G
FVL328
