DG834G Reference Manual
6-10 Managing Your Network
v3.0, September 2005

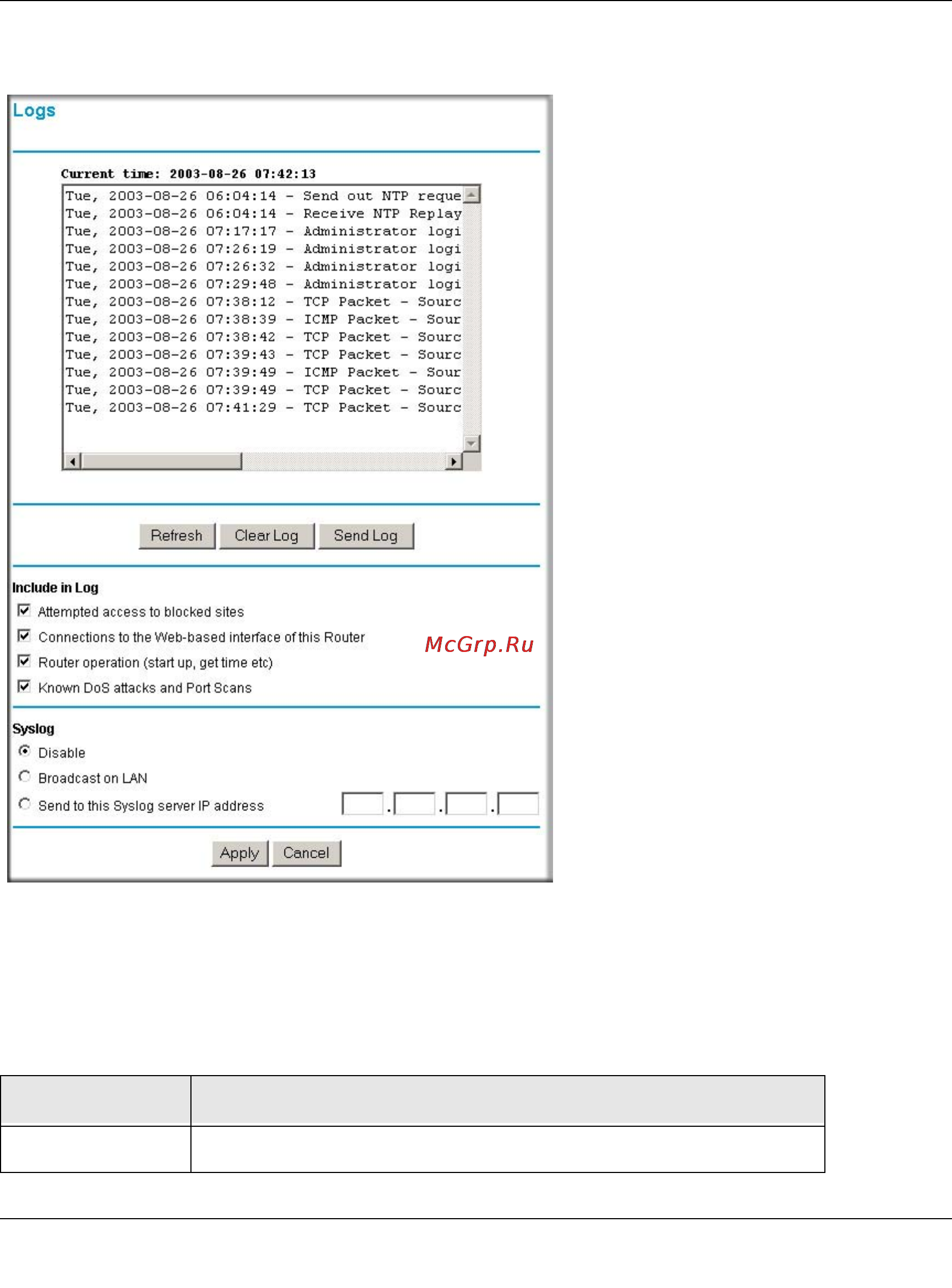

An example of the logs file is shown below.
Log entries are described in Table 6-1 below:
Figure 6-8
Table 6-1. Security Log entry descriptions
Field Description
Date and Time The date and time the log entry was recorded.
