DG834G Reference Manual
8-26 Virtual Private Networking
v3.0, September 2005
6. Repeat for the DG834G on LAN B and pay special attention to use the following network
settings as appropriate.
• WAN IP of the remote VPN gateway (e.g., 14.15.16.17)
• LAN IP settings of the remote VPN gateway:
— IP Address (e.g, 192.168.0.1)
— Subnet Mask (e.g., 255.255.255.0)
— Preshared Key (e.g., 12345678)
7. Use the VPN Status screen to activate the VPN tunnel by performing the following steps:
a. Open the DG834G management interface and click on VPN Status to get the VPN Status/
Log screen (Figure 8-27).

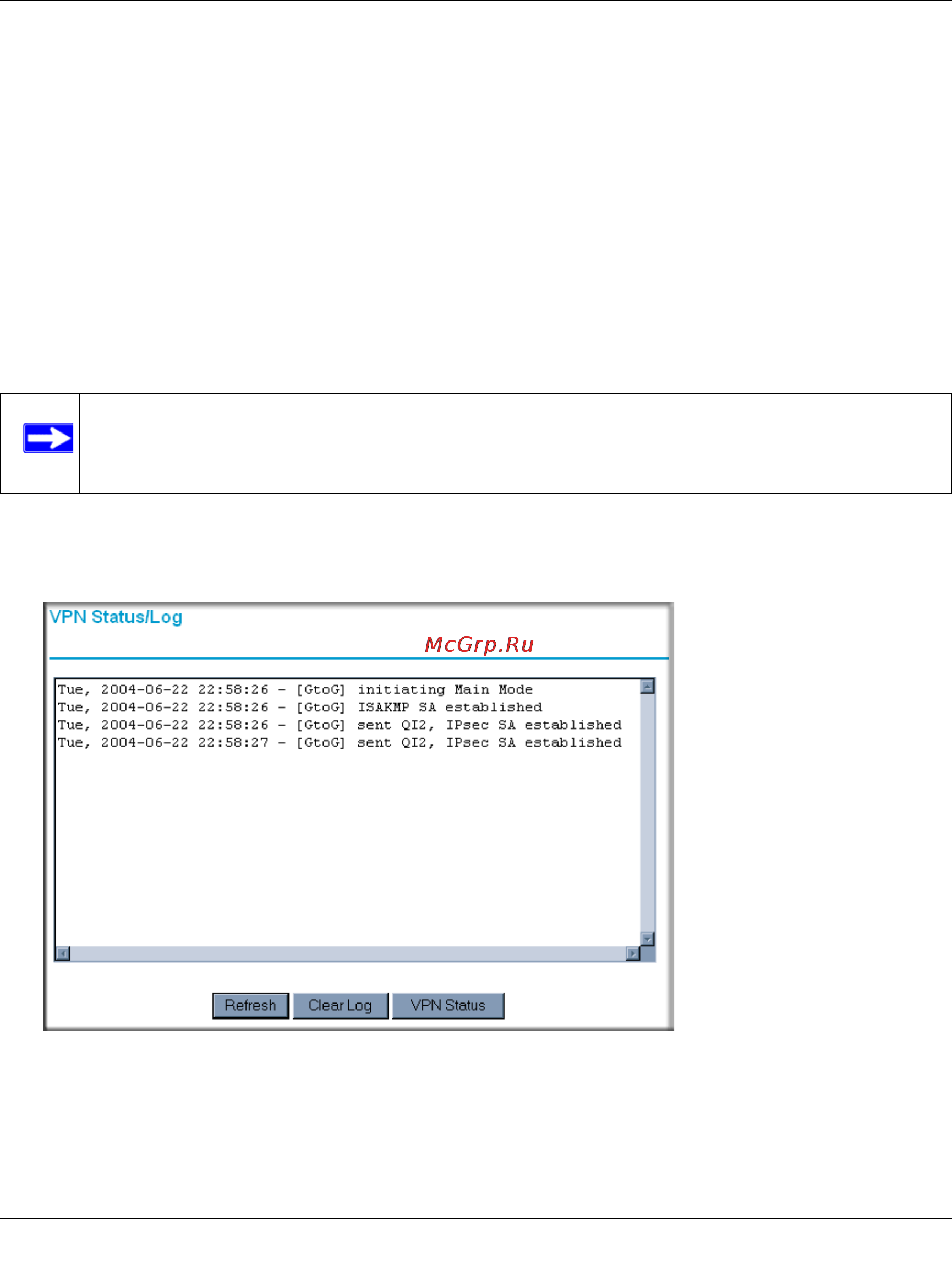

Figure 8-27: VPN Status/Log Screen
b. Click on VPN Status (Figure 8-29) to get the Current VPN Tunnels (SAs) screen
(Figure 8-28). Click on Connect for the VPN tunnel you want to activate.
Note: The VPN Status screen is only one of three ways to active a VPN tunnel. See
“Activating a VPN Tunnel” on page -27 for information on the other ways.
