DG834G Reference Manual
Virtual Private Networking 8-25
v3.0, September 2005

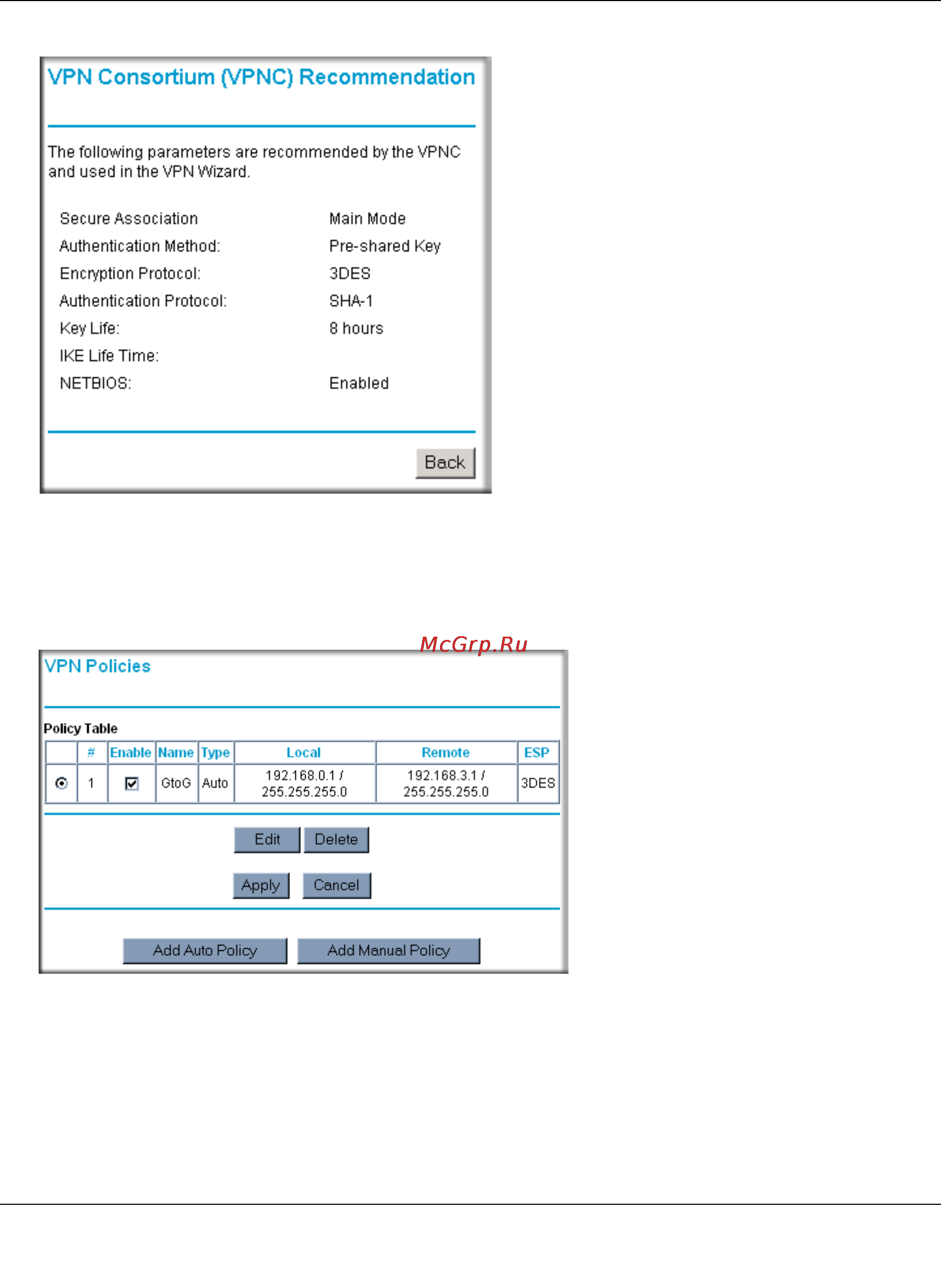

Figure 8-25: VPN Recommended Settings
5. Click Done on the Summary screen (see Figure 8-24) to complete the configuration
procedure. The VPN Settings menu below displays showing that the new tunnel is enabled.
Figure 8-26: VPN Policies
Note: Refer to “Using Auto Policy to Configure VPN Tunnels” on page -36 to enable the IKE
keepalive capability on an existing VPN tunnel.
1 hour
