DG834G Reference Manual
8-24 Virtual Private Networking
v3.0, September 2005

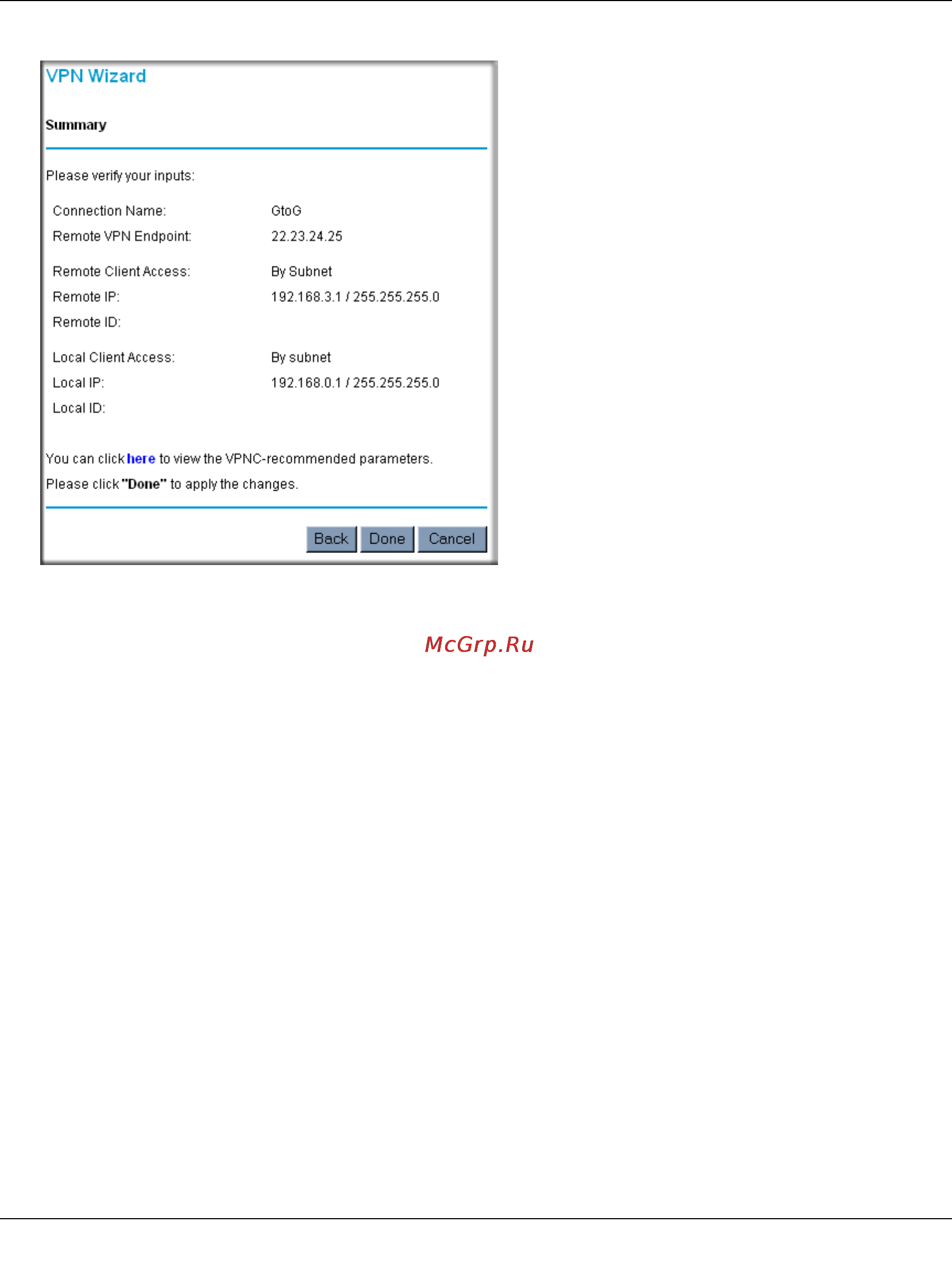

Figure 8-24: VPN Wizard Summary
To view the VPNC recommended authentication and encryption settings used by the VPN
Wizard, click the “here” link (see Figure 8-24). Click Back to return to the Summary screen.
