DG834G Reference Manual
C-10 NETGEAR VPN Configuration
v3.0, September 2005

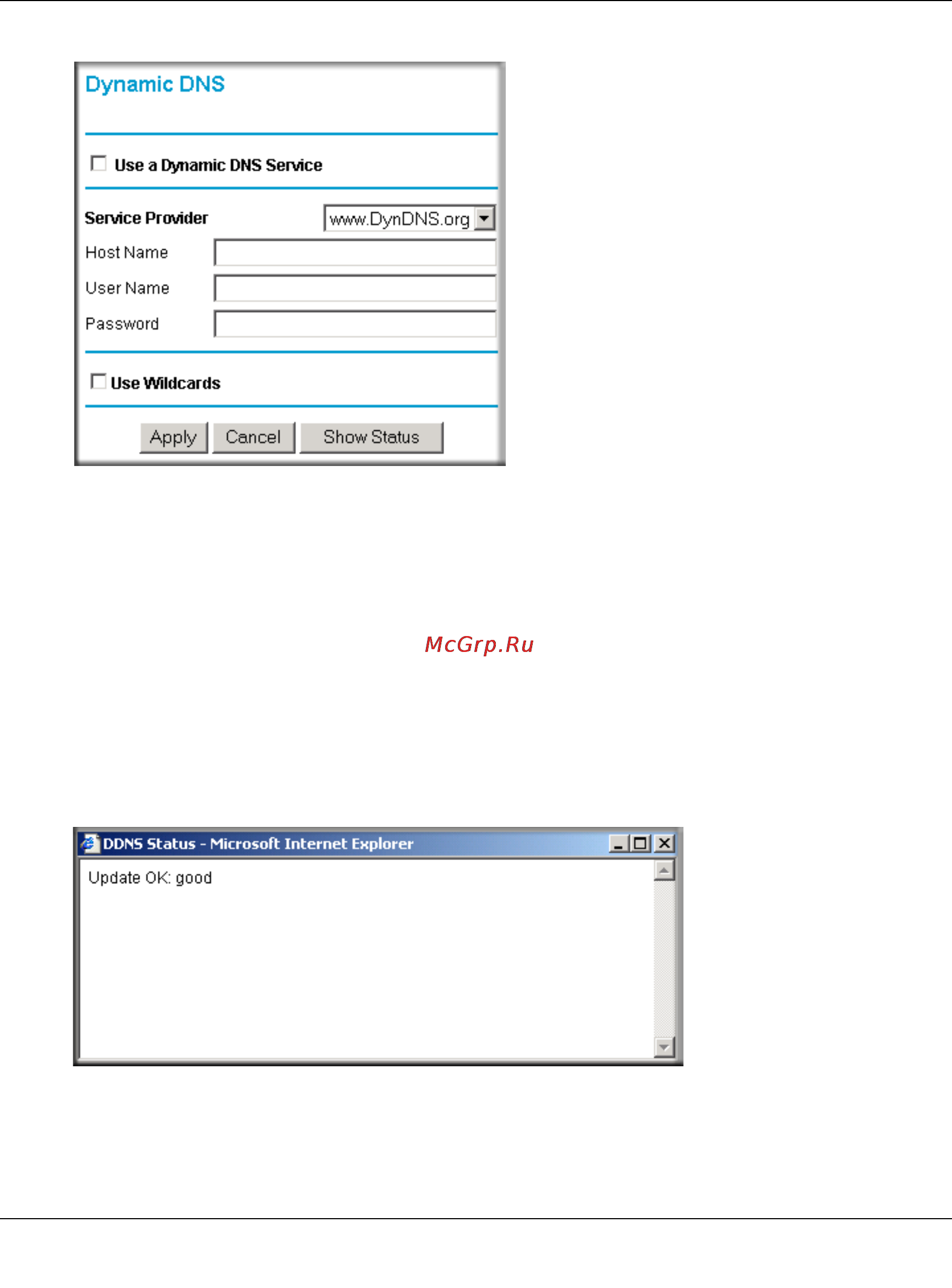

Figure C-6: Dynamic DNS Setup Screen
b.
Configure this screen with appropriate account and hostname settings and then click
Apply.
• Check the box Use a Dynamic DNS Service.
• Host Name = dg834g.dyndns.org
• User Name = <user's account username>
• Password = <user's account password>
c. Click Show Status. The resulting screen should show Update OK: good (see Figure C-7).
Figure C-7: Status Screen
