DG834G Reference Manual
NETGEAR VPN Configuration C-13
v3.0, September 2005

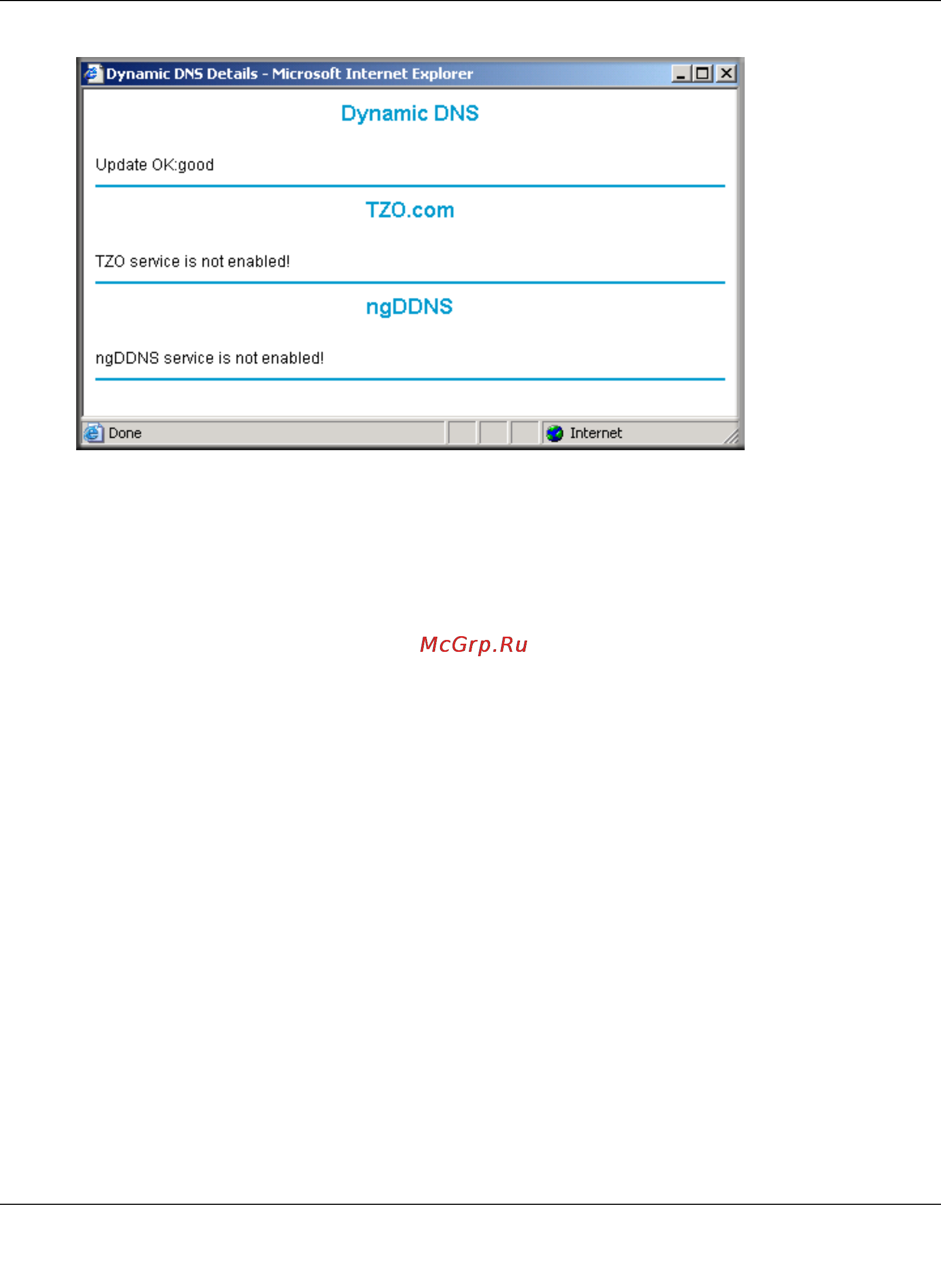

Figure C-10: Status Screen
5.
Configure the DG834G as in the Gateway-to-Gateway procedures using the VPN Wizard (see
“How to Set Up a Gateway-to-Gateway VPN Configuration“ on page -20), being certain to
use appropriate network addresses for the environment.
The LAN Addresses used in this example are as follows.
• DG834G
LAN IP = 10.5.6.1
LAN Subnet Mask = 255.255.255.0
•FVL328
LAN IP = 172.23.9.1
LAN Subnet Mask = 255.255.255.0
a. In Step 1, enter toFVL328 for the Connection Name.
b. In Step 2, enter fvl328.dyndns.org for the remote WAN's IP address.
c. In Step 3, enter the following:
• IP Address = 172.23.9.1
• Subnet Mask = 255.255.255.0
6. Configure the FVL328 as in the Gateway-to-Gateway procedures for the VPN Wizard (see
“How to Set Up a Gateway-to-Gateway VPN Configuration“ on page -20), being certain to
use appropriate network addresses for the environment.
