DG834G Reference Manual

Connecting the Router to the Internet 3-5

v3.0, September 2005

a. You need to install an ADSL filter for every telephone that uses the same phone line as

your ADSL modem router. Select the filter that came with your ADSL modem router.

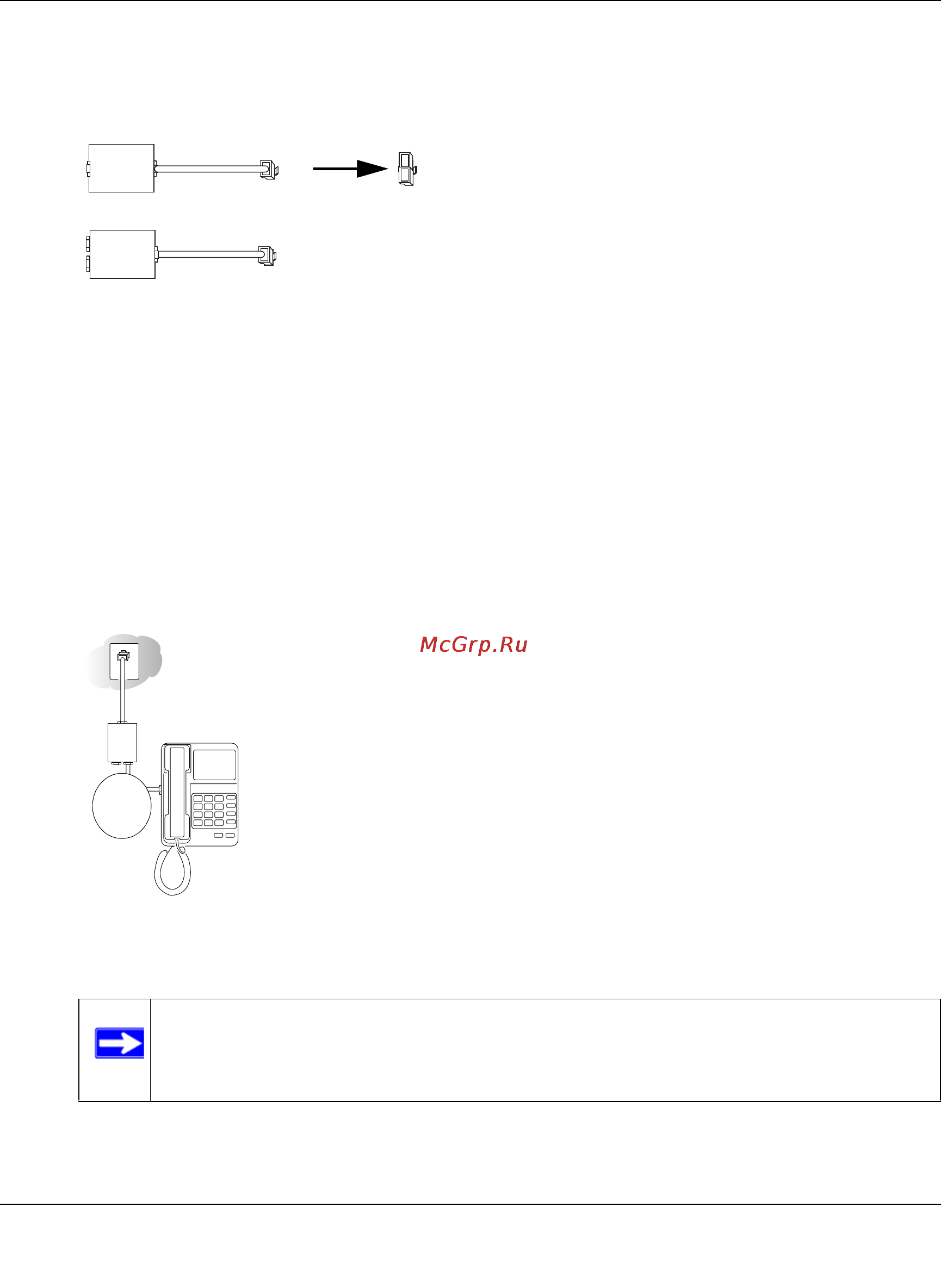

b. Two-Line Filter Example. Insert the two-line filter into the phone outlet and connect the

phone to the phone line connector (A):

1. One-Line Filter: Use with a phone or fax machine.

2. Splitter: Use with a one-line filter to share an outlet with a phone and the

ADSL modem

router.

3. Two-Line Filter with Splitter: Use to share an outlet with a phone and the ADSL modem

router.

Figure 3-3

Figure 3-4

Note: To use a one-line filter with a separate splitter, insert the splitter into the

phone outlet, connect the one-line filter to the splitter, and connect the

phone to the filter.

0HONE

!$3,

,INE

0HONE

!$3,

,INE
