Autel MaxiCheck DPF Reset [101/145] Freeze frame data

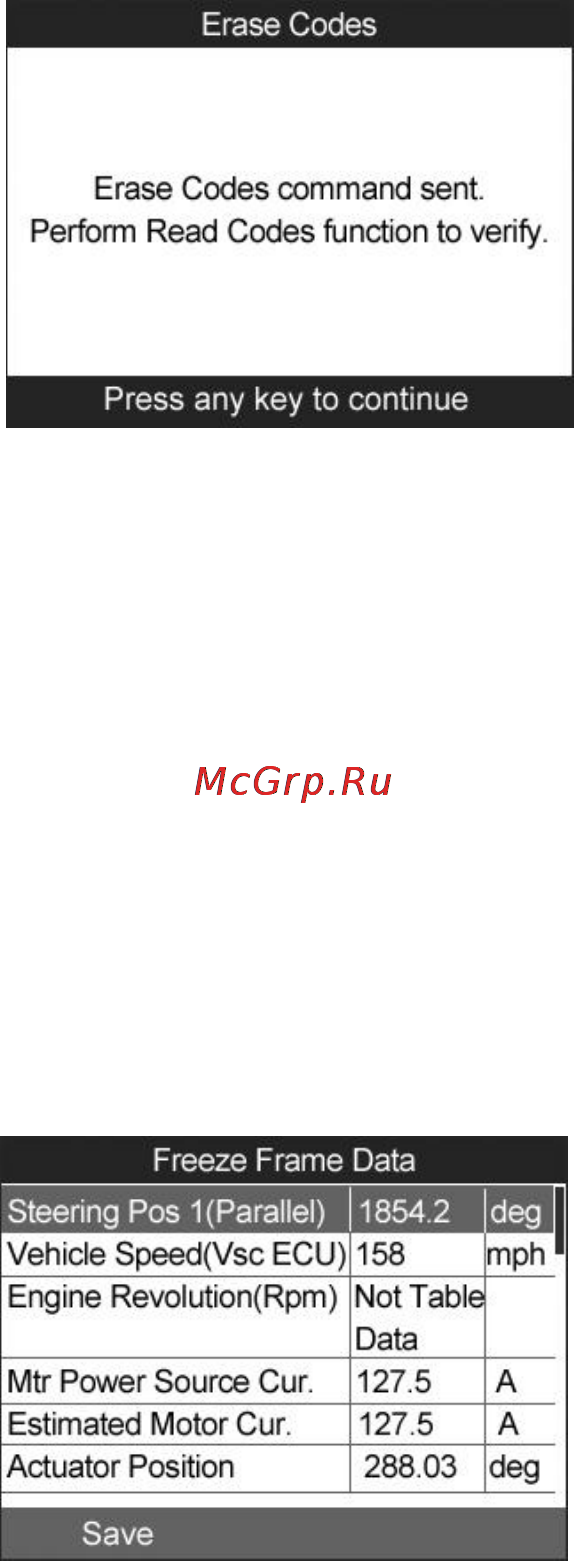

Figure 10.5

4) To make sure the codes are erased completely, perform Read

Codes function to verify.

10.3. Freeze Frame Data

This function allows user to view the vehicle‘s operating parameters

at the moment a DTC is detected.

1) From the function menu (Figure 10. 2) use the UP/DOWN

scroll button to select Freeze Frame Data and press the OK

button.

2) View the related operating parameters on screen.

Figure 10.6

3) Select Save option to store the codes or press ESC button to

exit without saving.

10.4. Live Data
