Autel MaxiCheck DPF Reset [111/145] Read codes

109

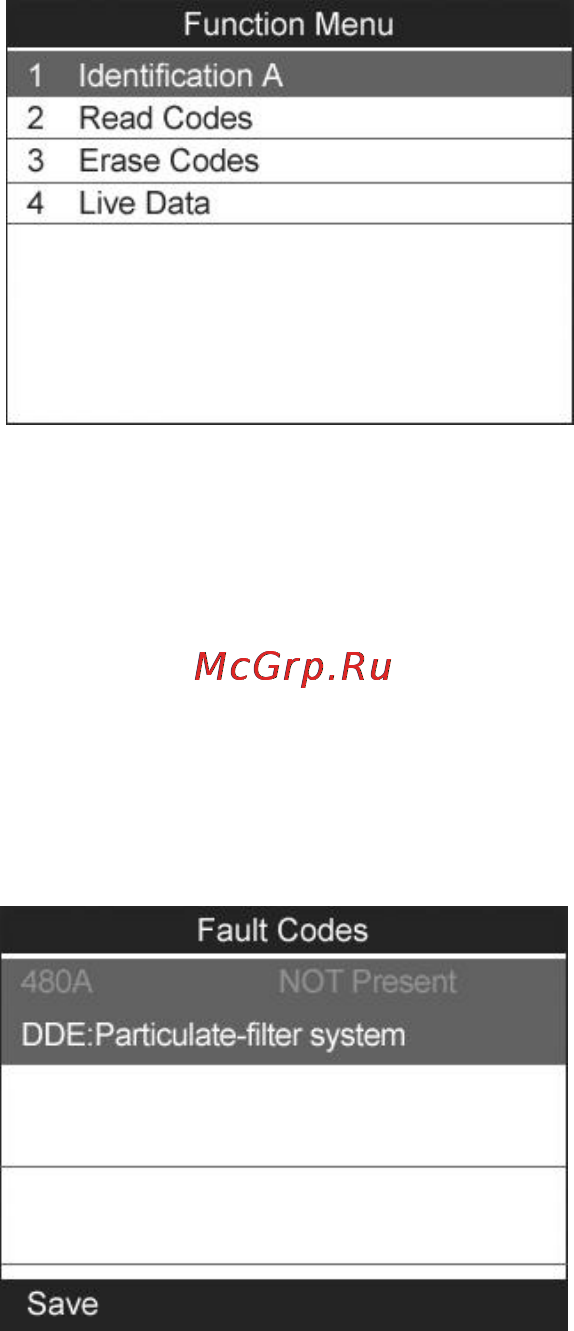

Figure 11.3

11.2.1 Read Codes

This function allows user to read the DPF DTCs from vehicle ECU.

1) From the function menu (Figure 11.3) use the UP/DOWN

scroll button to select Read Codes and press the OK button.

2) View DTCs and their definitions on screen.

Figure 11.4

3) Select Save option to store the codes or press ESC button to

exit without saving.

11.2.2 Erase Codes

This function allows user to erase the DPF DTCs in vehicle ECU.

1) From the function menu (Figure 11.3) use the UP/DOWN

scroll button to select Erase Codes and press the OK button.
