Autel MaxiCheck DPF Reset [49/145] C live data

1) From the TPMS diagnostic function menu (Figure 6.1), use the

UP/DOWN scroll button to select the Erase Codes, and press

OK button.

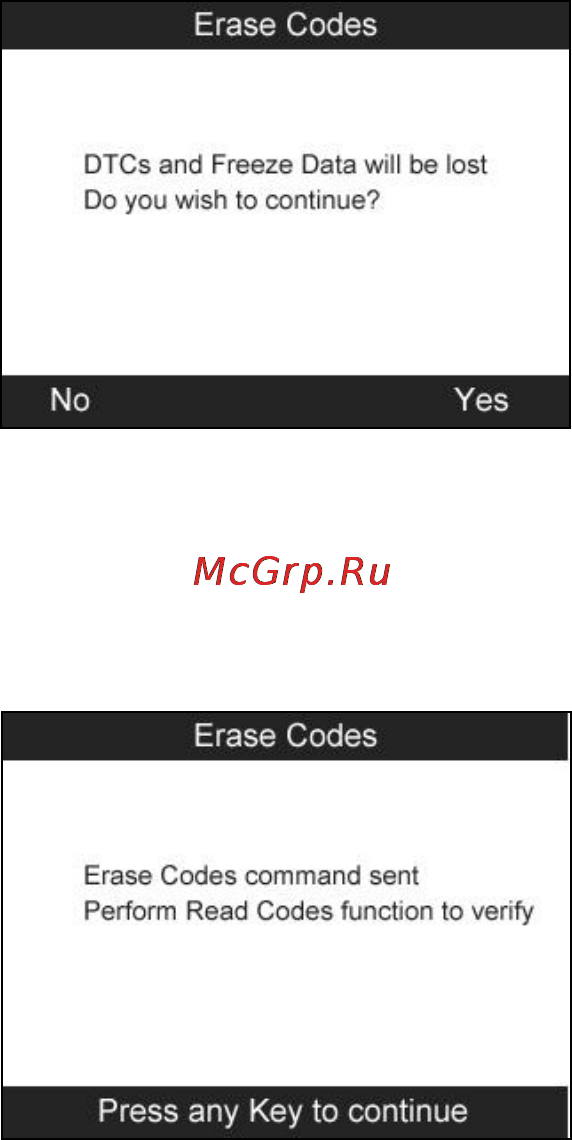

2) The tool will display a warning message for your confirmation.

Select ―Yes‖ to continue, ―No‖ to exit.

Figure 6.3

3) If the erase command is sent successfully, the screen will show

as below (Figure 6.4). Press any button to continue. To make

sure codes are erased clearly, run Read Codes again.

Figure 6.4

C. Live Data

This function enables you view TPMS-related data readings from a

selected ECU. With the live data screen displayed, you can view the

data in Text or graphical format, record and save files for later

viewing, sort the data, pause the readings and view past data, and

more.
