Autel MaxiCheck DPF Reset [36/145] O2 monitor test

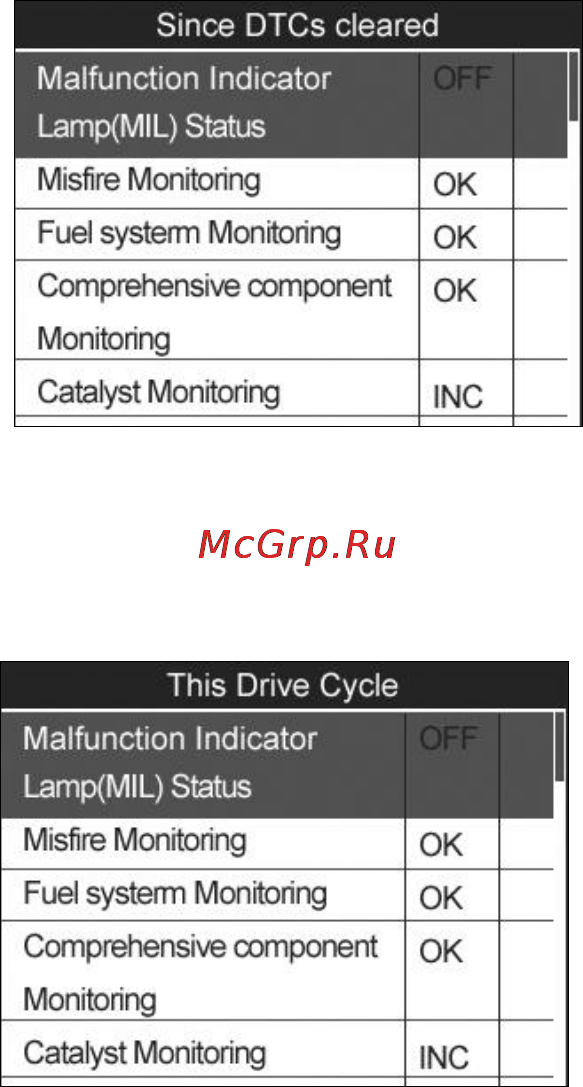

Figure 5.21

5) If the vehicle supports readiness test of ―This Drive Cycle‖, a

screen of the following displays: (Figure 5.22)

Figure 5.22

6) Use the UP/DOWN scroll button for more PIDs if additional

information is available on more than one page. Or use the

LEFT/RIGHT scroll button to view PIDs in the previous/next

page.

7) Press the ESC button to return to Diagnostic Menu.

5.6. O2 Monitor Test

OBD2 regulations set by SAE require that relevant vehicles

monitor and tests on the oxygen (O2) sensors to identify problems

related to fuel efficiency and vehicle emissions. These tests are not

on-demand tests and they are done automatically when engine

operating conditions are within specified limits. These test results
