Autel MaxiCheck DPF Reset [99/145] Read codes

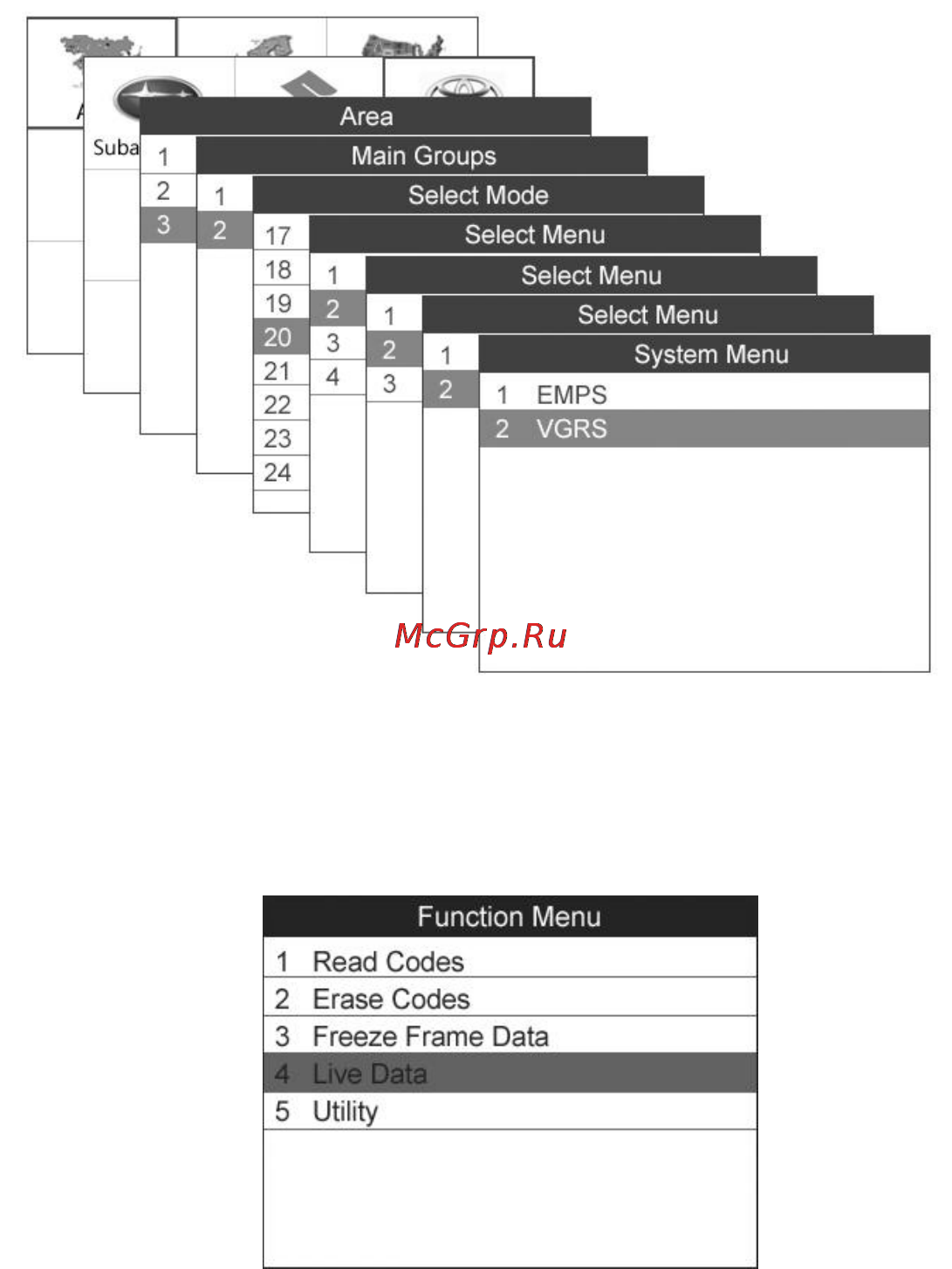

Figure 10.1

9. Use the UP/DOWN scroll button to select VGRS in the menu.

The screen displays as below.

Figure 10.2

10.1. Read Codes

This function allows user to read the SAS DTCs from vehicle ECU.

1) From the function menu (Figure 10.2) use the UP/DOWN

scroll button to select Read Codes and press the OK button.
