Autel MaxiCheck DPF Reset [30/145] Recording data

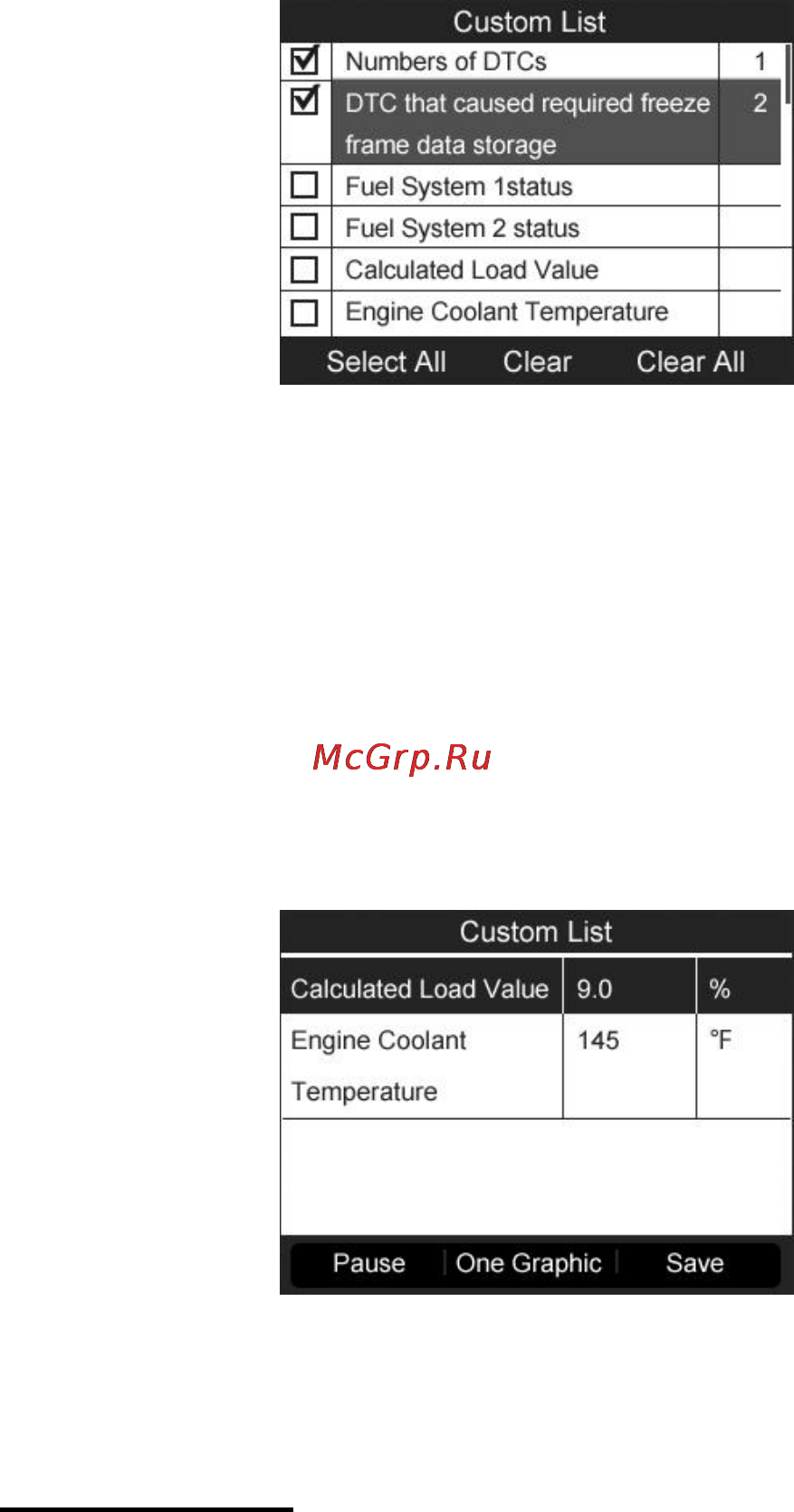

Figure 5.14

 The number to the right of selected item indicates sequence

of this item.

 If you want to deselect the item, press Clear button.

 To select all the items on the screen, press Select All button.

To clear all the selected items on the screen, press Clear All

button.

3) Press the OK button to view selected PIDs on screen.

Figure 5.15

4) Use the ESC button to return to previous menu.

Recording Data

The Record Data function allows recording vehicle modules‟

Parameter Identification (PID) data to help diagnose

intermittent vehicle problems. You could save data files to the
