Autel MaxiCheck DPF Reset [54/145] F ecu information

1) From the TPMS diagnostic function menu (Figure 6.1), use the

UP/DOWN scroll button to select the Special Function, and

press OK button.

2) The tool will display a list of available special functions for the

vehicle being tested.

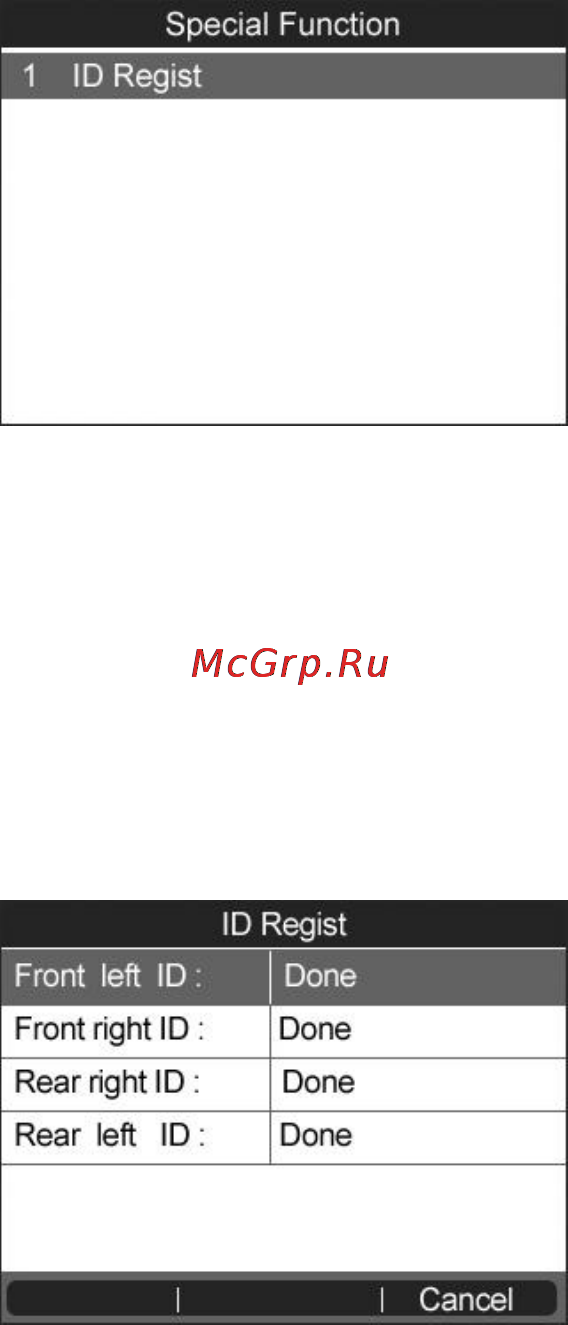

Figure 6.12

Taking ID Regist for example:

1) From Special Function Menu, use the UP/DOWN scroll button

to select ID Regist function. (Figure 6.12)

2) The tool will communicate with vehicle computer and register

the TPMS sensor IDs to the ECU. When the registration is

completed, the screen displays as below.

Figure 6.13

F. Ecu Information
