1) From the TPMS diagnostic function menu (Figure 6.1), use the

UP/DOWN scroll button to select the Ecu Information, and

press OK button.

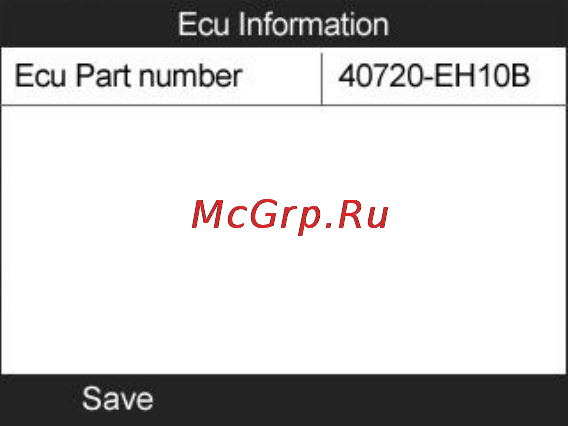

2) The tool will display the Ecu information for your viewing and

saving.

Figure 6.14

3) Select Save option to save the information for later review or

press the ESC button to return to the previous menu.
