112
4) Press the OK button to confirm your selection and retrieve the
selected live sensor data.

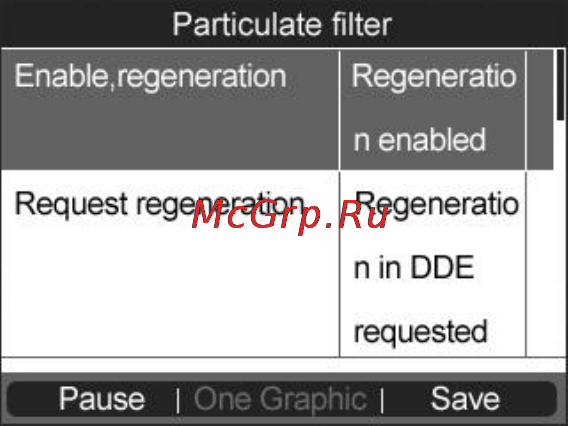

Figure 11.9
Press the corresponding FUNCTION BUTTON ‗Save‟ to store
the retrieved live data for later playback or printing.
Press the corresponding FUNCTION BUTTON ‗Stop Save‟ to
stop saving data and resume live sensor data retrieving.
Press the corresponding FUNCTION BUTTON ‗Pause‘ to
suspend live sensor data retrieving.
Press the corresponding FUNCTION BUTTON ‗Continue‘ to
resume live sensor data retrieving.
If the ‗One Graphic‘ option is highlighted when a specific item
is selected, the graphic information is available.
When the sensor data is shown in graph, the tool offers two
more options: Two Graphic and Merge Graphic. The first
option can display two graphs on the same screen, and the last
option can merge the two graphs into one.
5) Press the ESC button to return to the previous menu.
11.2.4 Identification A
This function enables you to retrieve the DPF-related control unit
information.
1) From the function menu (Figure 11.3) use the UP/DOWN scroll
button to select Identification A and press the OK button.
