Autel MaxiCheck DPF Reset [48/145] Tpms diagnostics

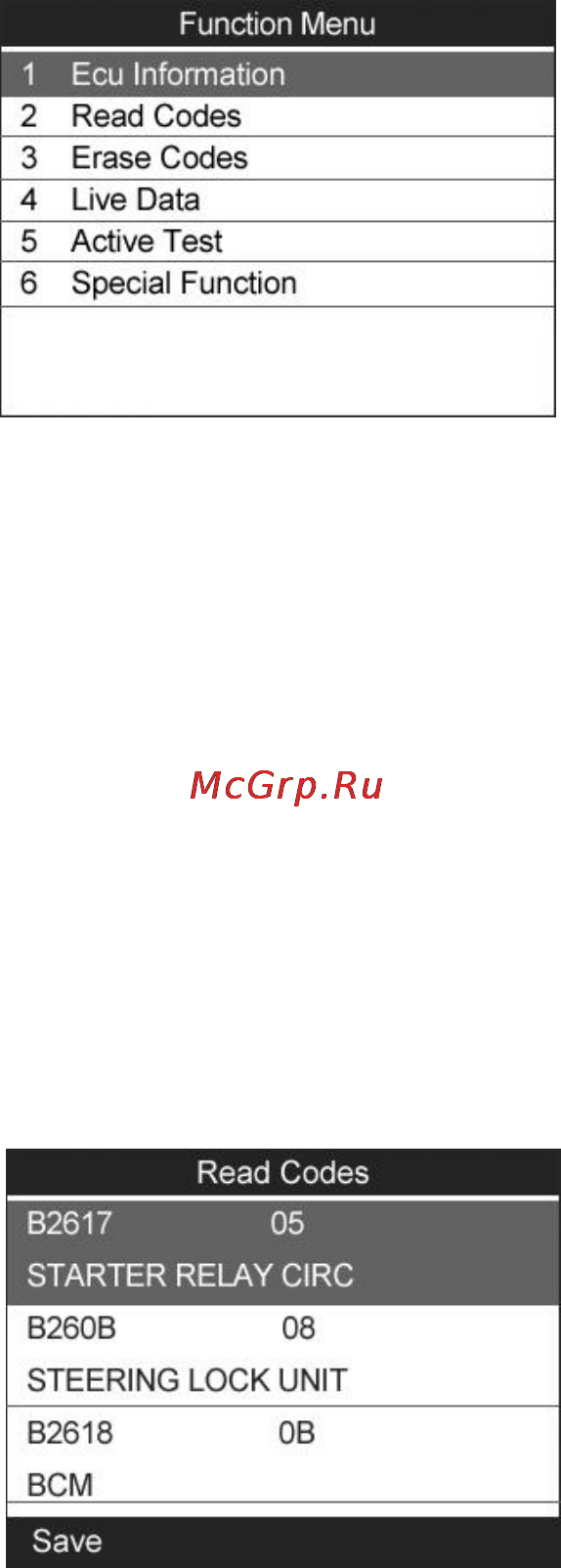

Figure 6.1

6.2. TPMS diagnostics

A. Read Codes

This function enables you to read TPMS-related diagnostic trouble

codes (DTCs) from a selected ECU.

1) From the TPMS diagnostic function menu (Figure 6.1), use the

UP/DOWN scroll button to select the Read Codes, and press

OK button.

2) The tool will display TPMS DTCs retrieved from the vehicle‘s

ECU for your viewing. Select ―Save‖ to store data for future

review, or press Esc button to exit without saving. (Figure 6.2).

Figure 6.2

B. Erase Codes

This function enables you to erase TPMS-related diagnostic trouble

codes (DTCs) in a selected ECU.
