Autel MaxiCheck DPF Reset [95/145] E module id information

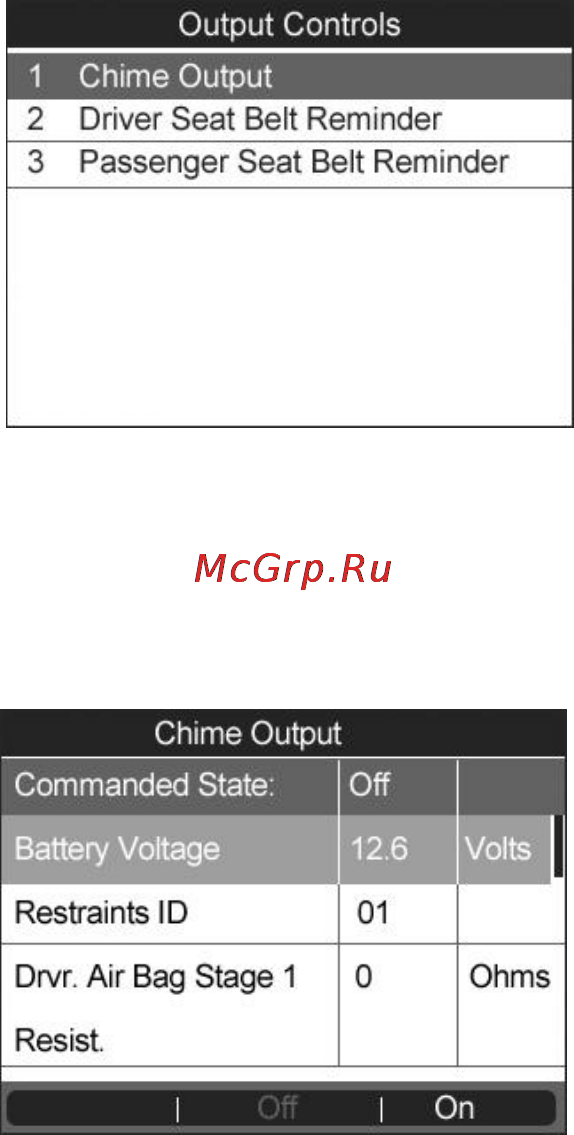

Figure 9.33

3) Press the corresponding FUNCTION BUTTON ‗ON‘ or

―OFF‖ to check whether the Chime on the vehicle is turning on

or off.

Figure 9.34

E. Module ID Information

This function allows users to view the selected control module

information.

1) From the diagnostic function menu (Figure 9.26) use the

UP/DOWN scroll button to select Module ID Information

and press the OK button.

2) View module information present with its IDs and part

numbers.
