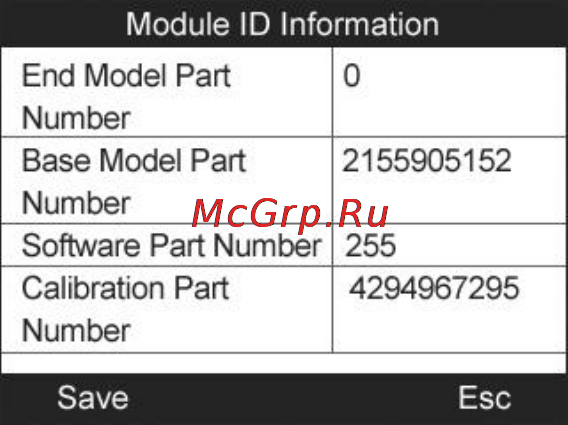

Figure 9.35

3) Select Save to store the module ID information or press the

ESC button to exit without saving.

 If the vehicle does not support SRS communication, an

advisory message shows on the screen. Press ESC button to

return to the previous menu.
