101
Press the corresponding FUNCTION BUTTON ‗Stop Save‟ to
stop saving data and resume live sensor data retrieving.
Press the corresponding FUNCTION BUTTON ‗Pause‘ to
suspend live sensor data retrieving.
Press the corresponding FUNCTION BUTTON ‗Continue‘ to
resume live sensor data retrieving.
If the ‗One Graphic‘ option is highlighted when a specific item
is selected, the graphic information is available.

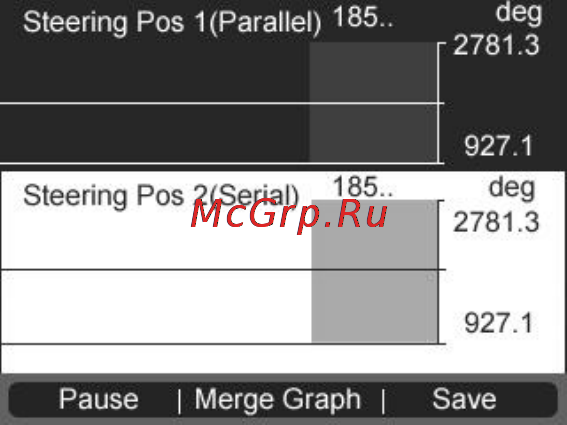

When the sensor data is shown in graph, the tool offers two
more options: Two Graphic and Merge Graphic. The first
option can display two graphs on the same screen, and the last
option can merge the two graphs into one.
Figure 10.9
Press the corresponding FUNCTION BUTTON „Text‟ or the
ESC button to return to previous screen.
B. Custom List
This feature lets you customize the scan tool display to show only
those PIDs that are of interest at the current time. You can customize
the Live Data display by placing the Scan Tool in "Custom List"
mode and selecting only the PIDs that you wish to display. To
customize the Live Data display, proceed as follows:
1) To retrieve customized live sensor data, use the UP/DOWN
scroll button to select Custom List from Live Data menu
(Figure 10.7) and press the OK button.
