Autel MaxiCheck DPF Reset [115/145] Dpf service functions

113

2) The tool will display the ECU information for your viewing and

saving.

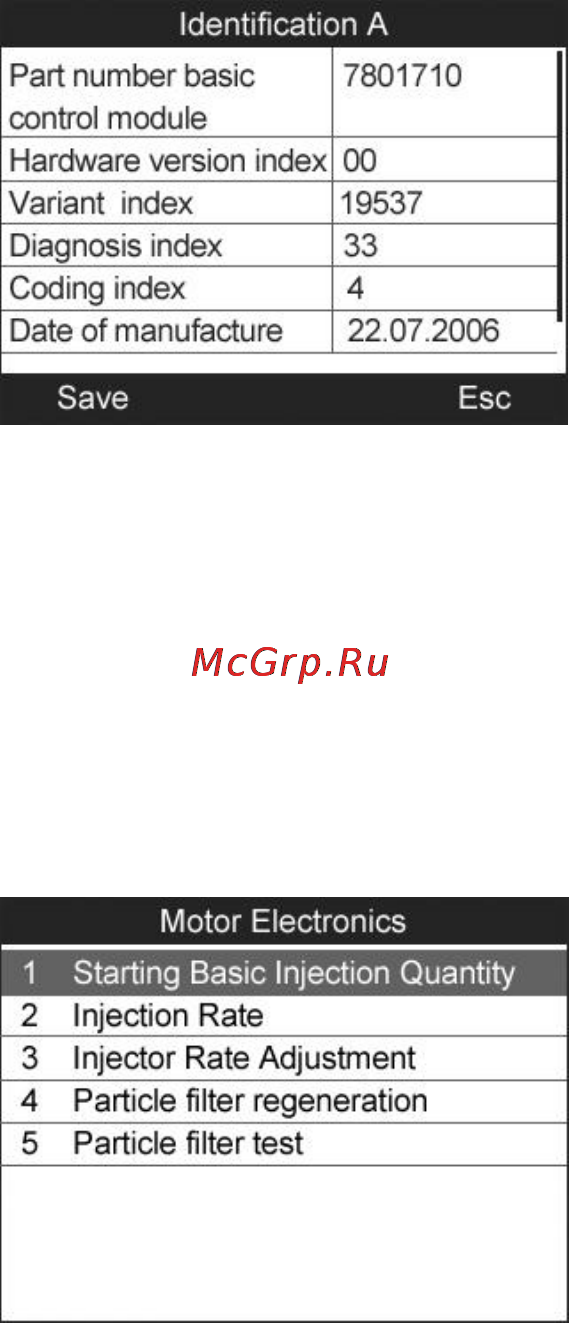

Figure 11.10

3) Select Save option to save the information for later review or

press the ESC button to return to the previous menu.

11.3 DPF Service Functions

Use the UP/DOWN scroll button to select Service Functions in the

menu. (Figure 11.2）The screen displays as below.

Figure 11.11

11.3.1 Starting Basic Inspection Quantity

This function enables you to start fuel delivery matching.

1) From the service functions menu (Figure 11.11) use the

UP/DOWN scroll button to select Starting Basic Inspection

Quantity and press the OK button.
