Autel MaxiCheck DPF Reset [110/145] Dpf diagnostics

108

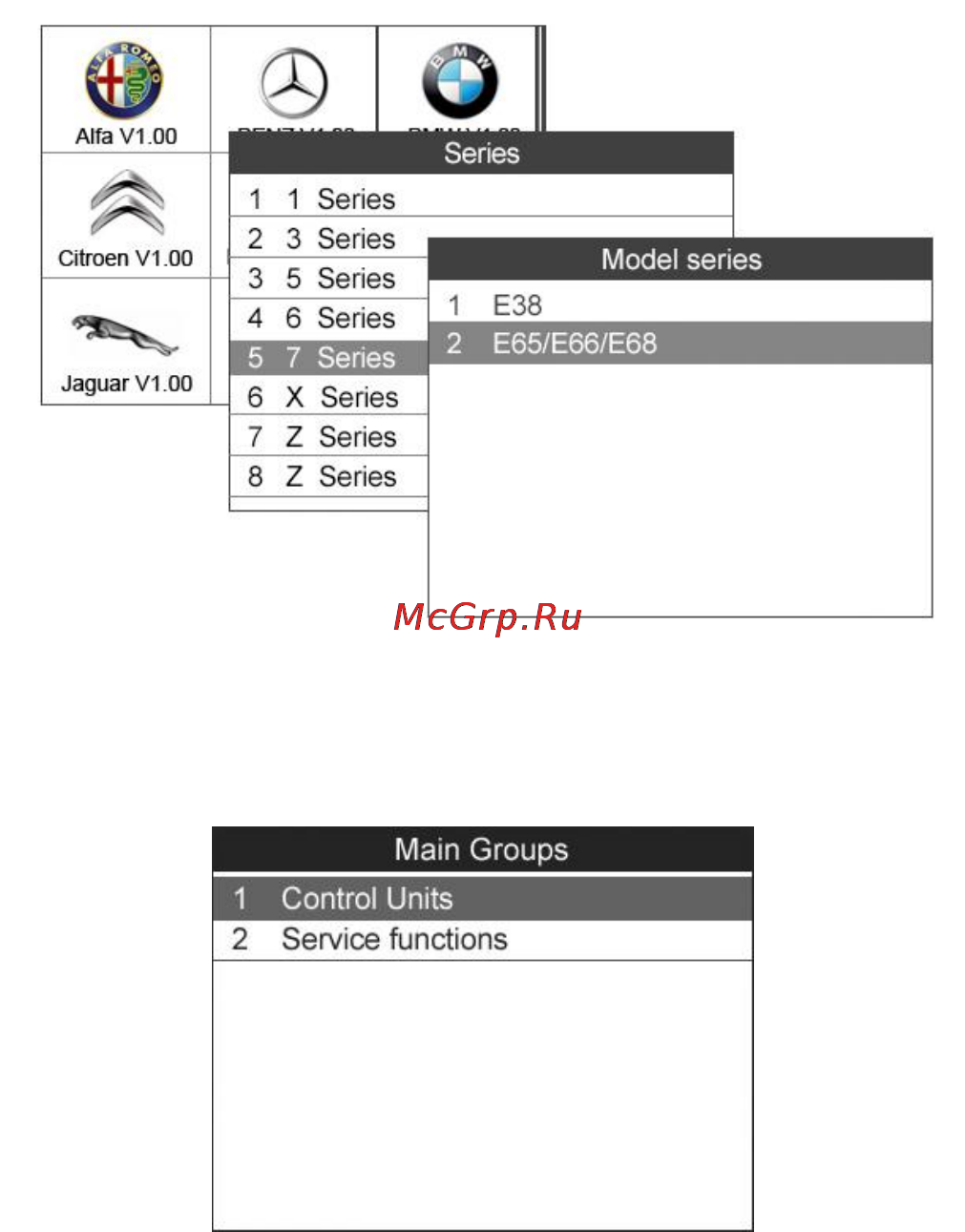

Figure 11.1

8. The screen displays as below.

Figure 11.2

11.2 DPF Diagnostics

Use the UP/DOWN scroll button to select Control Units in the

menu. (Figure 11.2）The computer will automatically detect the

DPF-related system, DDE, which is dedicated for BMW. For other

vehicles, the system may be different. Then the screen displays as

below.
