 For some vehicles, the ABS and SRS systems are divided into

two systems. SRS is located in Body system, while ABS is

located in Chassis system. In this case, you will need to select

the correct system to run the desired diagnostics.

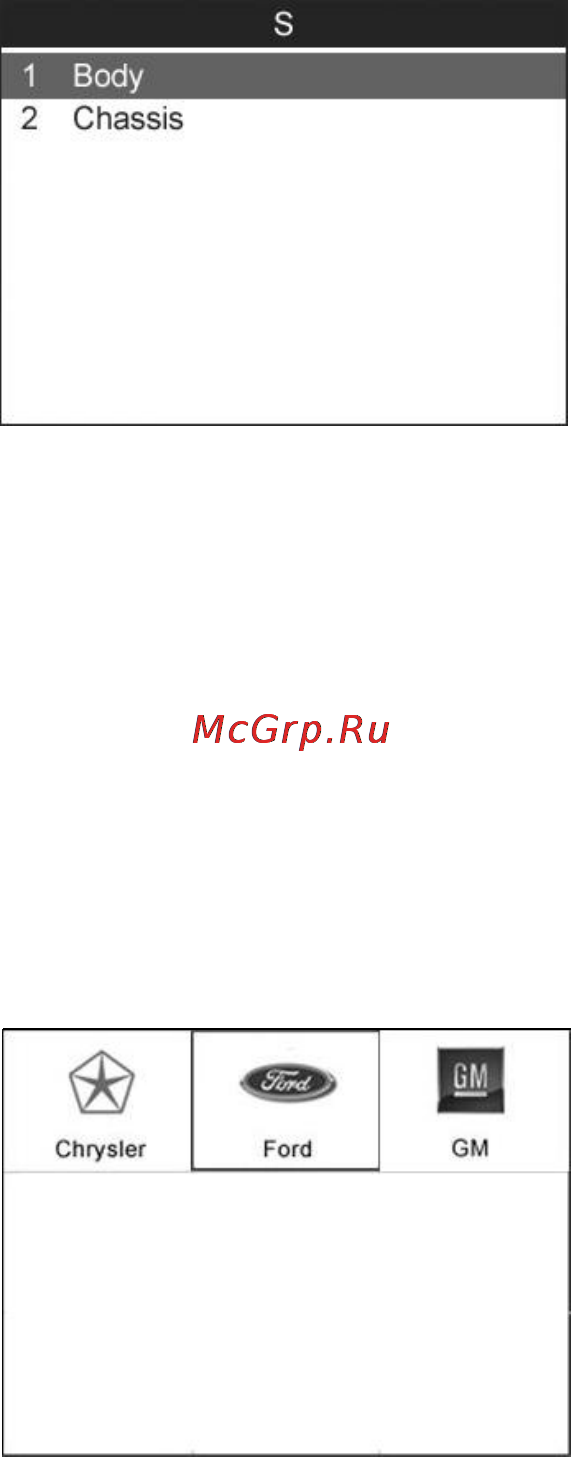

Figure 9.3

B. Manual vehicle entry

This mode allows users to input and save specific vehicle

information (i.e. PCM Part Number, Vehicle Calibration Number

Tear Tag, and VIN) manually. This function enables direct access to

the vehicle‘s ABS system and makes the diagnostic testing more

convenient, saving time doing step-by-step entry selections. (Taking

Ford as an example)

1) Select the Ford logo from the car make screen.

Figure 9.4
