Autel MaxiCheck DPF Reset [12/145] System setup
![Autel MaxiCheck DPF Reset [12/145] System setup](/views2/1200930/page12/bgc.png)
10
During vehicle testing, power for the scan tool is usually provided
through the vehicle cable connection. When the scan tool is not
connected to a vehicle, the scan tool can be powered with an AC/DC
external power adapter.
While the scan tool is powered via the vehicle Data Link Connector
(DLC), just follow the steps below to turn on the scan tool:
1) Connect the Cable to scan tool.
2) Find DLC on vehicle.
A plastic DLC cover may be found for some vehicles and you
need to remove it before plugging the OBD2 cable.
3) Plug the cable to the vehicle‘s DLC.

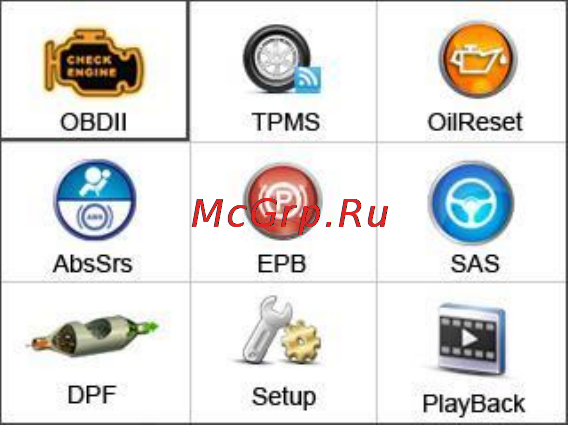

4) Power up the scan tool , and wait for the Main Screen to
appear.(figure 3.1)
Figure 3.1
3.6 System Setup
The System Setup functions allow you to adjust default settings and
view information about the scan tool.
1) Language: Selects the desired language.
2) Unit of measure: Sets the unit of measure to English or Metric.
3) Beep Set: Turns on/off beep.
4) LCD Test: Checks if the LCD display is working properly.
5) Key Test: Checks if the keyboard is working properly.
