Autel MaxiCheck DPF Reset [85/145] C data display

1) From the diagnostic function menu (Figure 9.13) use the

UP/DOWN scroll button to select Diagnostic Trouble Codes

and press the OK button.

2) Use the UP/DOWN scroll button to select Clear DTC

Information and press the OK button. (Figure 9.14)

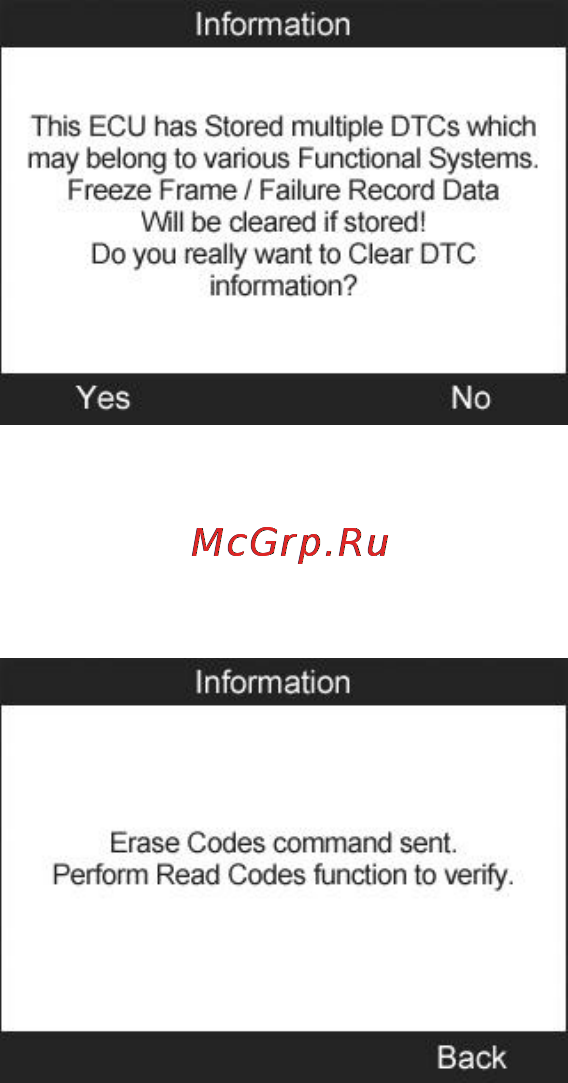

3) A warning message will come up asking your confirmation.

Figure 9.16

4) Select Yes to continue or No to exit. When the command is

sent, the tool will display a message as below:

Figure 9.17

5) To make sure the codes are erased completely, perform Read

DTC Information function to verify.

C. Data Display

This function enables you view ABS-related data readings from a

selected ECU. With the live data screen displayed, you can view the
