From the TPMS diagnostic function menu (Figure 6.1), use the

UP/DOWN scroll button to select the Live Data, and press OK

button.

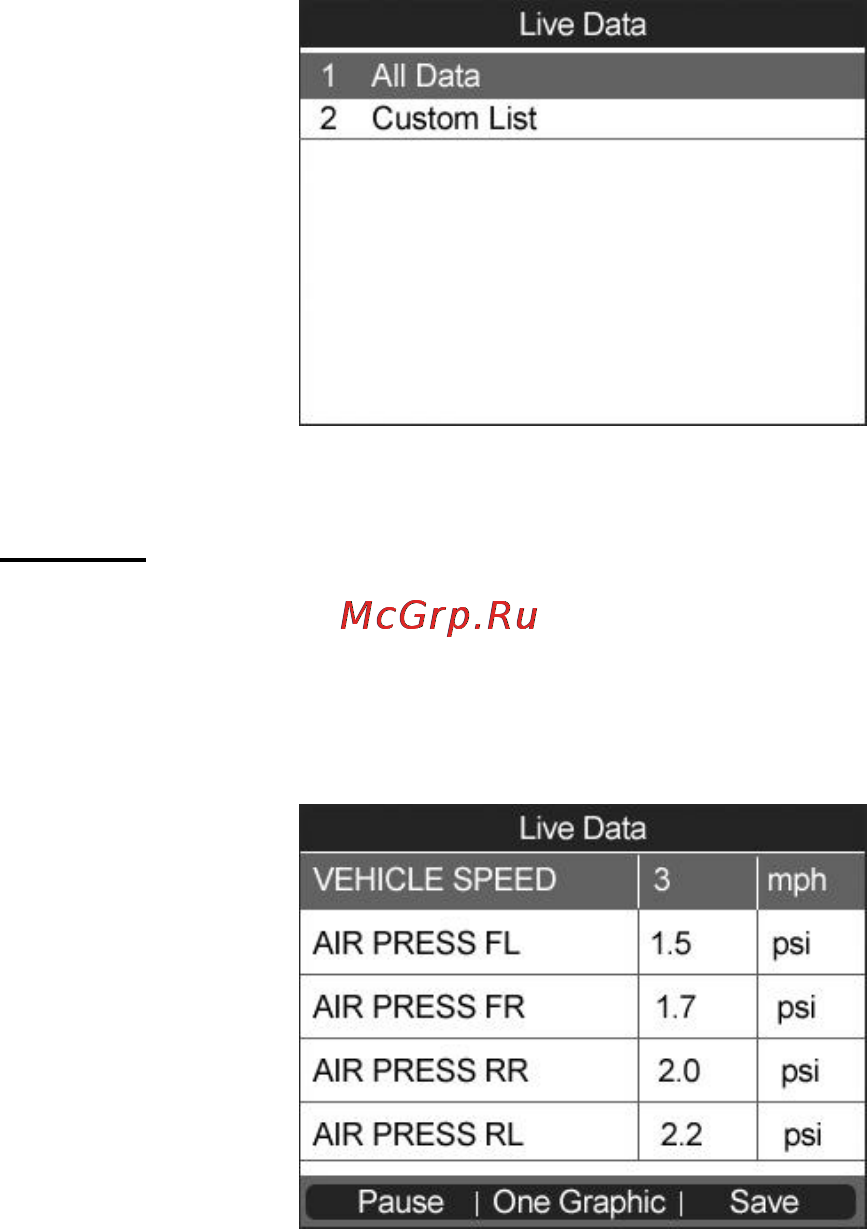

Figure 6.5

All Data

1) From the Live Data menu (Figure 6.5), use the UP/DOWN

scroll button to select All Data and press the OK button.

2) The tool will display a list of all live sensor data. (Figure 6.6)

Figure 6.6

 Press the corresponding FUNCTION BUTTON ‗Save‟ to store

the retrieved live data for later playback or printing.

 Press the corresponding FUNCTION BUTTON ‗Stop Save‟ to

stop saving data and resume live sensor data retrieving.

 Press the corresponding FUNCTION BUTTON ‗Pause‘ to

suspend live sensor data retrieving.
