 Press the corresponding FUNCTION BUTTON ‗Continue‘ to

resume live sensor data retrieving.

 If the ‗One Graphic‘ option is highlighted when a specific item

is selected, the graphic information is available.

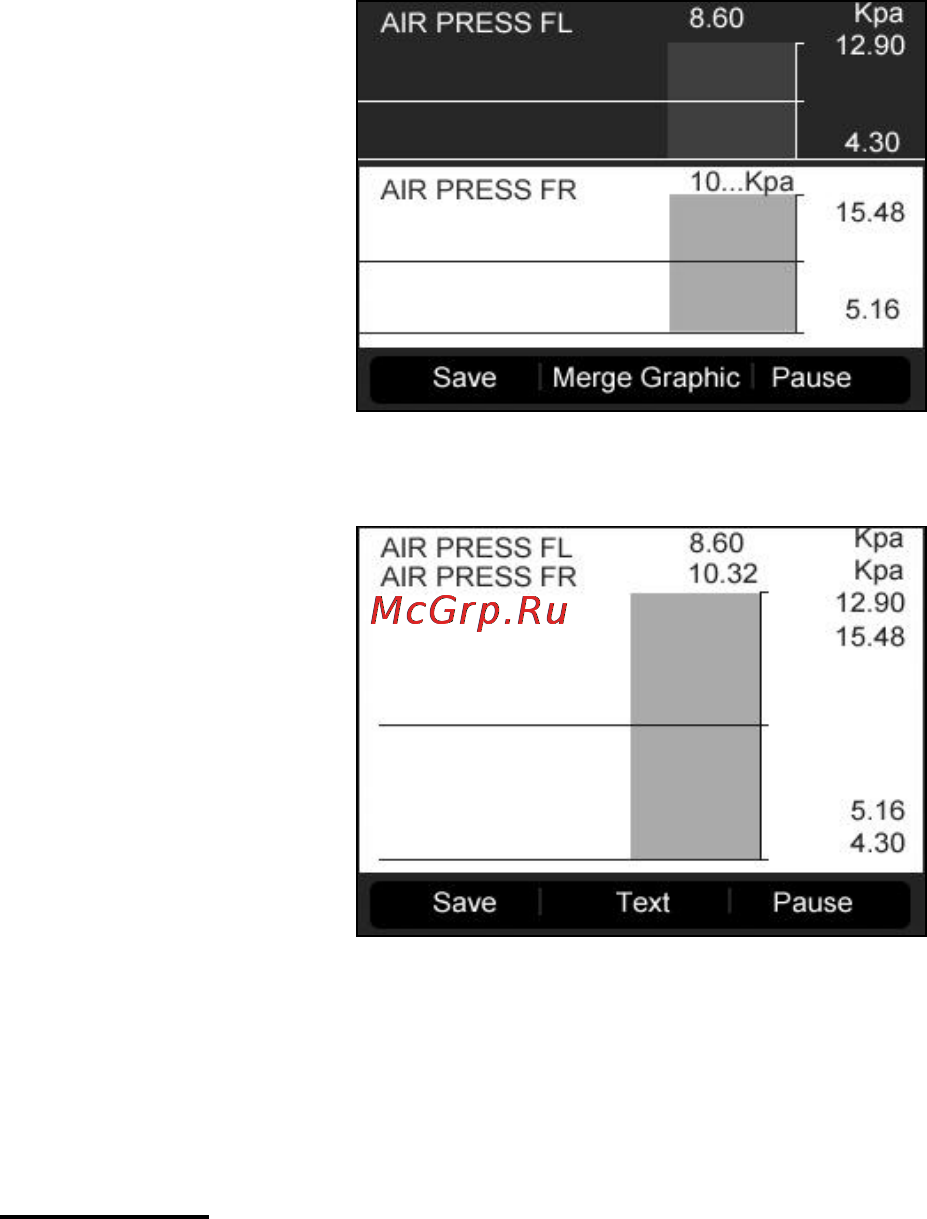

 When the sensor data is shown in graph, the tool offers two

more options: Two Graphic and Merge Graphic. The first

option can display two graphs on the same screen (Figure 6.7),

and the last option can merge the two graphs into one. (Figure.

6.8)

Figure 6.7

Figure 6.8

 Press the corresponding FUNCTION BUTTON „Text‟ or the

ESC button to return to previous screen.
