120

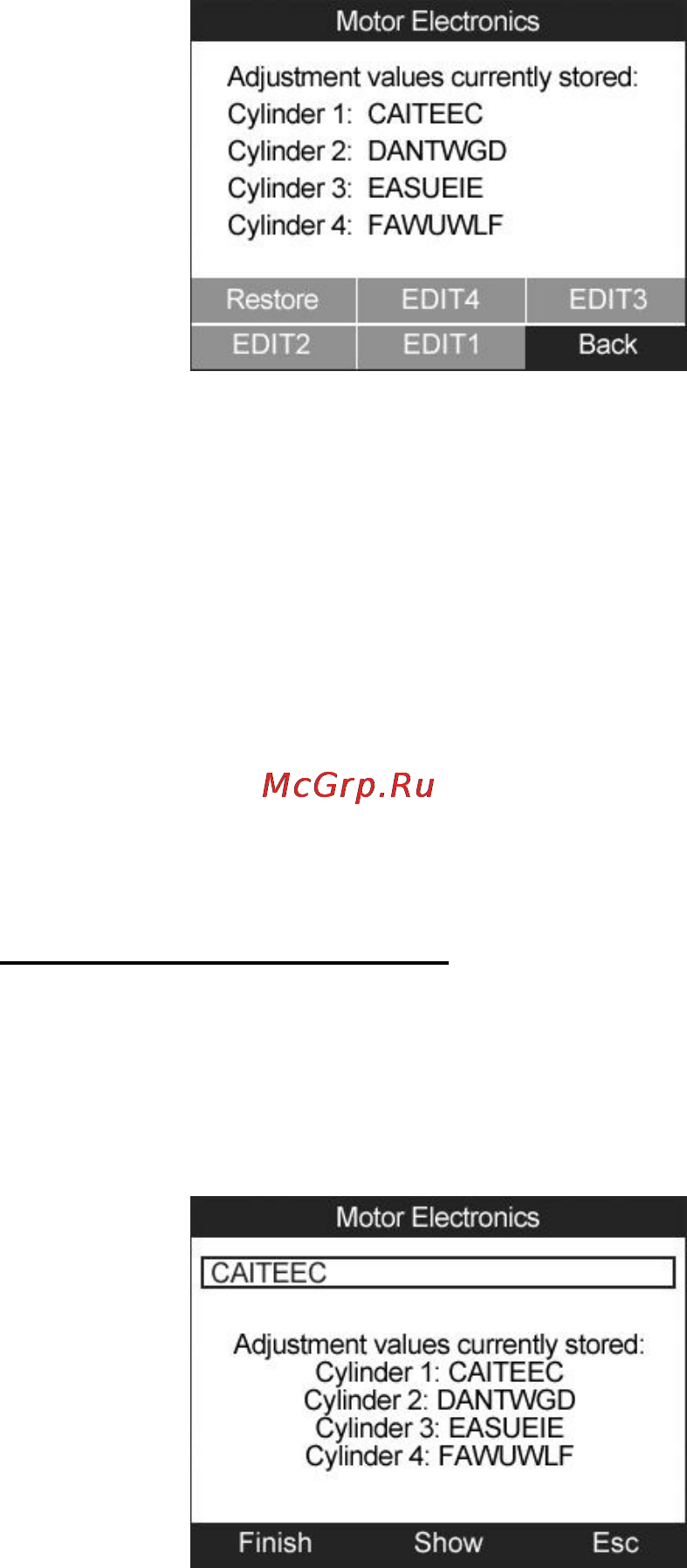

Figure 11.19

The option keys at the bottom of the screen work as below.

【EDIT 1】Edit Cylinder 1 injector code

【EDIT 2】Edit Cylinder 2 injector code

【EDIT 3】Edit Cylinder 3 injector code

【EDIT 4】Edit Cylinder 4 injector code

【Back】Return to the previous menu

【Restore】Retain the old value

A. Enter new value for cylinder

From the Injector rate adjustment menu (Figure 11.19) use the

LEFT/RIGHT scroll button to select one option and press the OK

button. The screen displays as below. You will need to input a new

value for Cylinder injector.

Figure 11.20
