4) A series of instruction screens appears for users to perform the

particle filter regeneration step by step. Follow the onscreen

instructions and press the OK button.(Figure 11.24) Do this

until the tool reads off the regeneration status as below.(Figure

11.25)

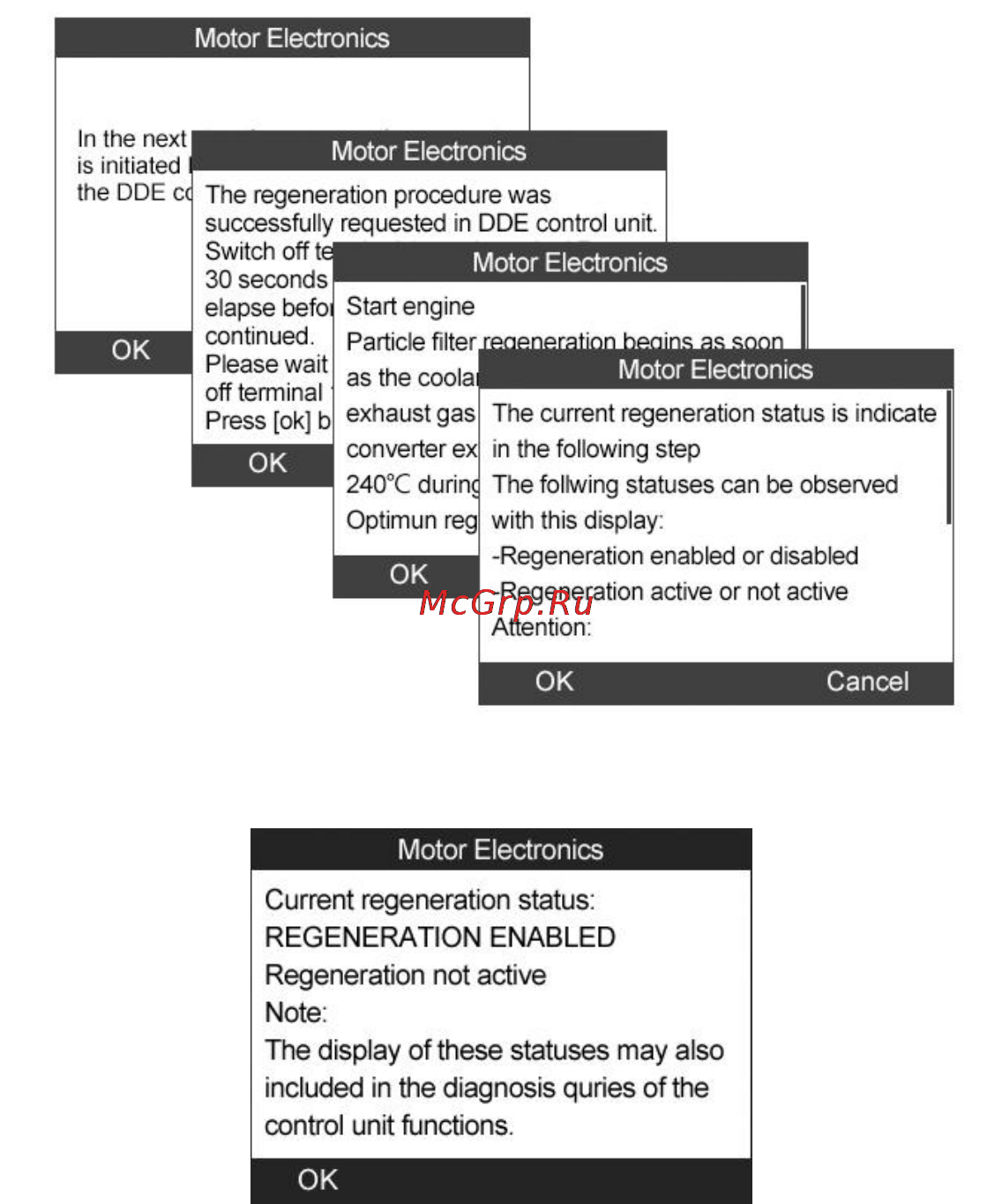

Figure 11.24

Figure 11.25

5) When the particle filter regeneration is complete, the tool will

ask your confirmation to exit the display. Select Repeat to
