131

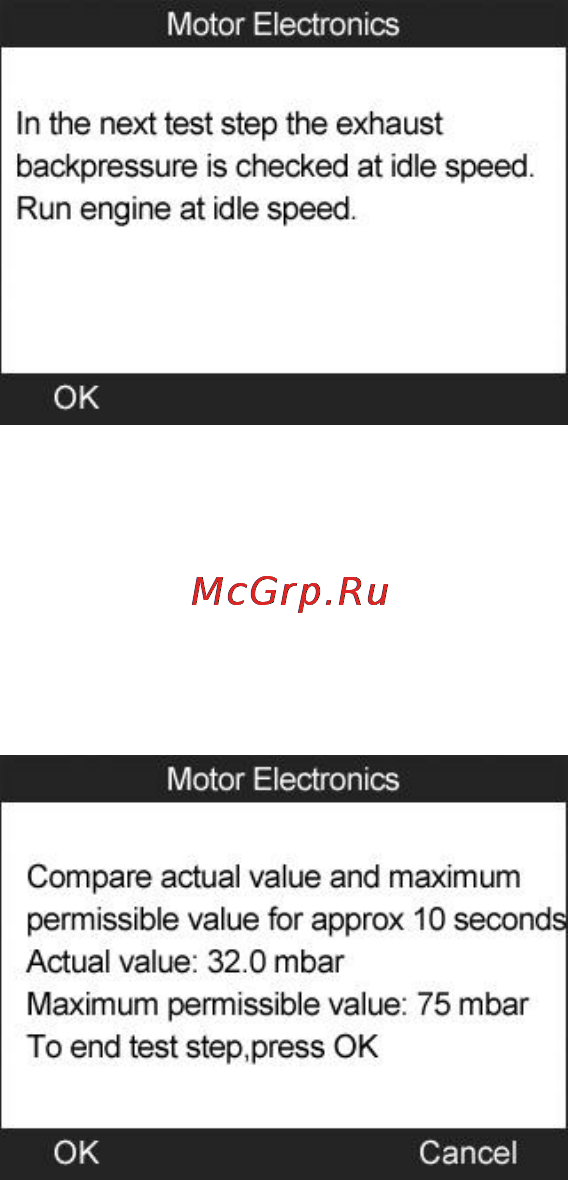

Figure 11.39

c) Check the exhaust backpressure with engine running idle. The

tool will read off the actual backpressure value and compare

with the upper limit. (Figure 11.40). Select OK to continue the

test or Cancel to return to previous menu.

Figure 11.40

 If the engine is not running at idle speed, the tool will display a

warning message. (Figure 11.41) Select OK to repeat the test or

select Cancel to exit.
