The View Data function allows viewing of live or real time PID

data of vehicle‟s computer module(s).

1) To view live data, use the UP/DOWN scroll button to select Live

Data from Diagnostic Menu and press the OK button. (Figure

5.3)

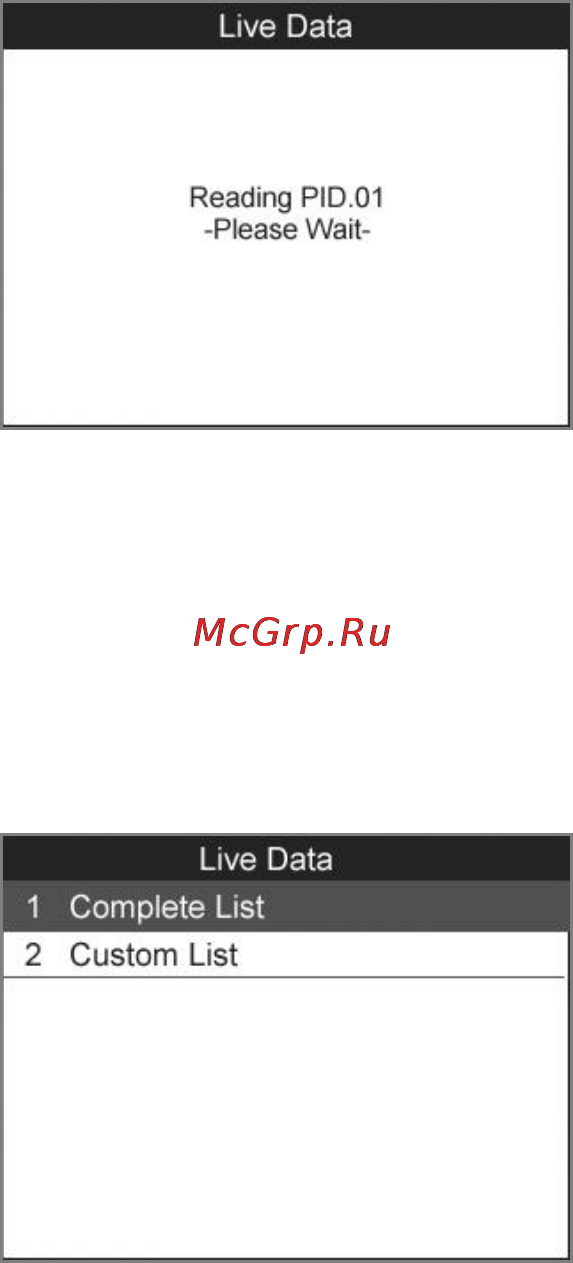

2) Wait a few seconds while the scan tool validates the PID MAP.

(Figure 5.9)

Figure 5.9

A. Viewing Complete List

1) To view complete set of data, use UP/DOWN scroll button to

select Complete List from Live Data menu and press the OK

button. (Figure 5.10)

Figure 5.10
