 If the vehicle under test does not support the mode, an

advisory message will be displayed on the screen.

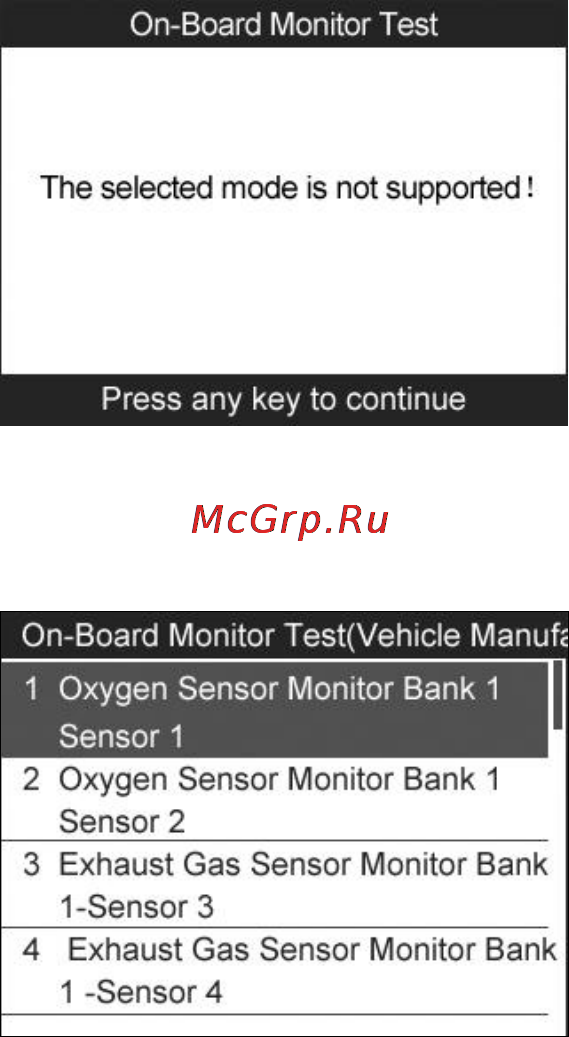

Figure 5.28

 For CAN-equipped vehicles, test selections can be as below:

Figure 5.29

6) Use the UP/DOWN scroll button to select the desired monitor

from On-Board Monitor Test menu and press the OK button.

7) View test data on screen.
