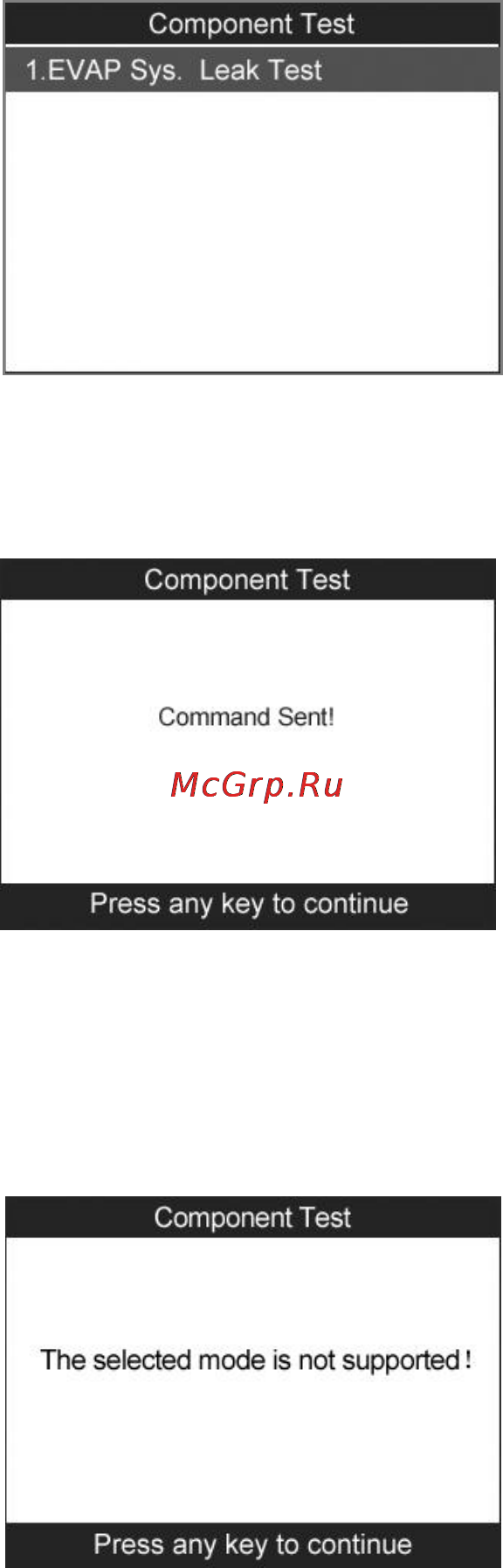

Figure 5.32

3) If the test has been initiated by the vehicle, a confirmation

message will be displayed on the screen.

Figure 5.33

 Some vehicles do not allow scan tools to control vehicle

systems or components. If the vehicle under test does not

support the EVAP Leak Test, an advisory message is

displayed on the screen.

Figure 5.34
