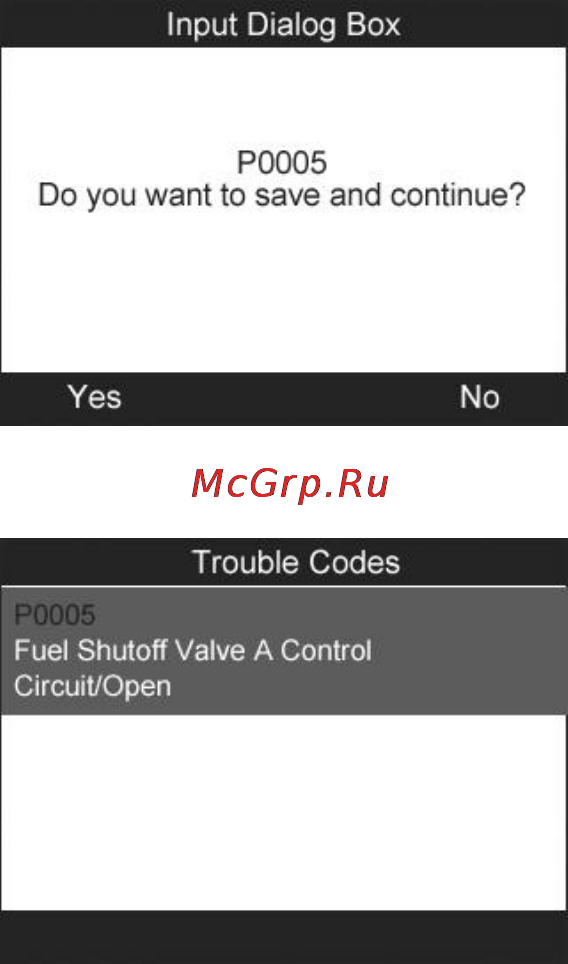

5) Press Yes or OK button to proceed. The scan tool will display

DTC definition as below.

Figure 5.41

Figure 5.42

 Use the LEFT/RIGHT scroll button to view the previous /

next DTC.

 Select Save to record code definition.

 For manufacturer specific codes, you need to select a vehicle

make on an additional screen to look for DTC definitions.

 If definition could not be found (SAE or Manufacturer

Specific), the scan tool displays ―Please refer to vehicle

service manual!‖

6) Press No or ESC button to return to previous menu.
