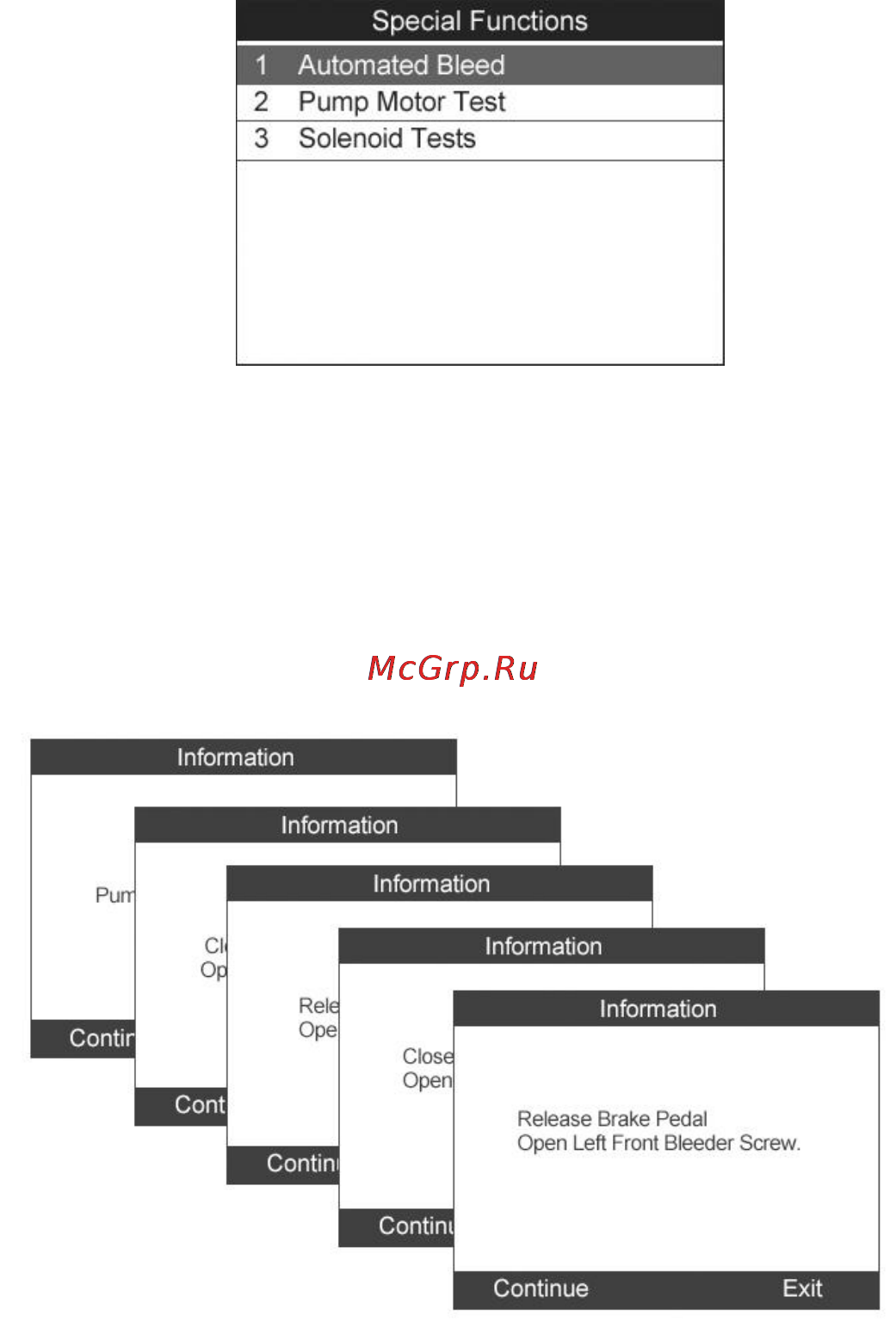

Figure 9.21

2) Use the UP/DOWN scroll button to select the desired function,

and press the OK button. (Taking Automated Bleed as an

example)

3) A series of message screens appears to instruct users on the

whole procedure. Follow the on-screen instructions step by step

to take the proper operation.

Figure 9.22

4) Take actions properly until the tool displays a completion

message.
