MSI Z77A-GD65 GAMING [22/204] Mount ng screw holes

En-12

MS-7751 Motherboard

Mountng Screw Holes

When nstallng the motherboard, rst nstall the necessary mountng stands requred

for an motherboard on the mountng plate n your computer case. If there s an I/O back

plate that came wth the computer case, please replace t wth the I/O backplate that

came wth the motherboard package. The I/O backplate should snap easly nto the

computer case wthout the need for any screws. Algn the mountng plate’s mountng

stands wth the screw holes on the motherboard and secure the motherboard wth the

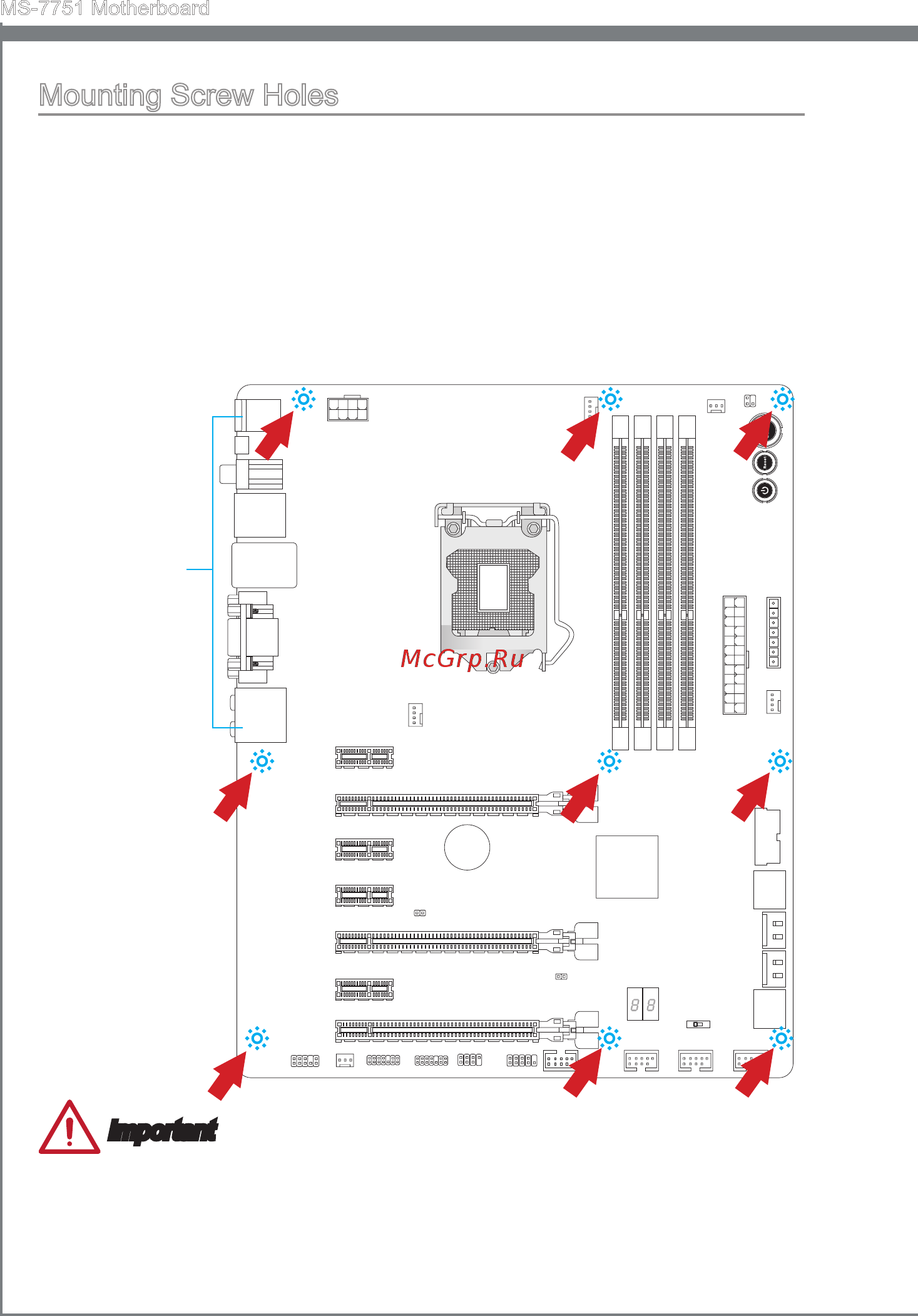

screws provded wth your computer case. The locatons of the screw holes on the

motherboard are shown below. For more nformaton, please refer to the manual that

came wth the computer case.

Important

Install the motherboard on a at surface free from unnecessary debrs.

To prevent damage to the motherboard, any contact between the motherboard cr

cutry and the computer case, except for the mountng stands, s prohbted.

Please make sure there are no loose metal components on the motherboard or wthn

the computer case that may cause a short crcut of the motherboard.

•

The I/O ports should be facng toward

the rear of the computer case. They

should lne up wth the holes on the

I/O backplate.
