RECOIL STARTER

5-7

POWR

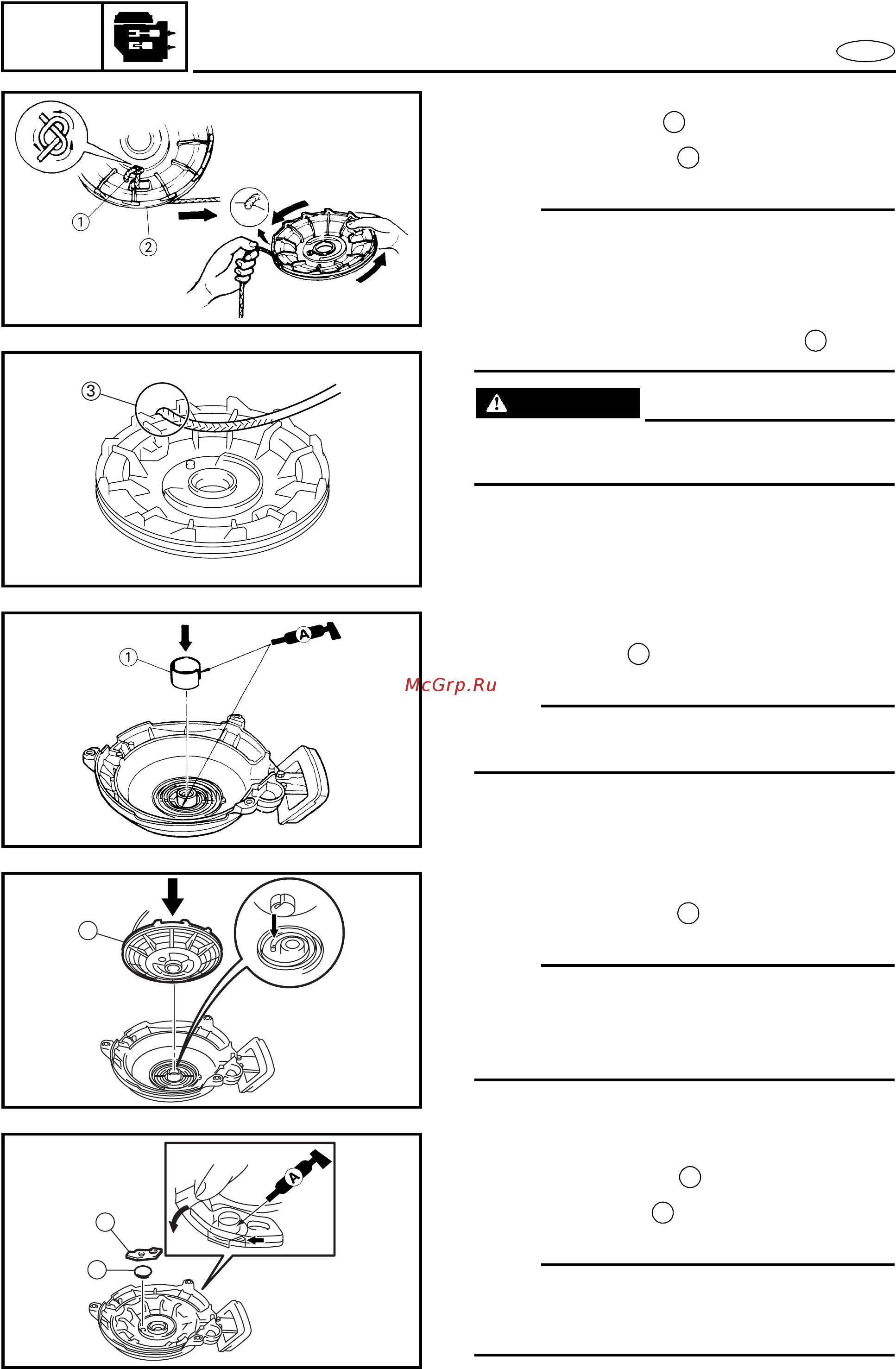

2. Install:

• Starter rope

• Sheave drum

NOTE:

• Insert the rope through the rope hole

and knot the end as shown.

• Wind the rope 1-1/2 turns counterclock-

wise onto the sheave drum.

• Place the rope at the cutaway .

WARNING

Do not use a damaged starter rope, it could

cause injury.

3. Install:

• Bushing

NOTE:

Mount the bushing on the starter case

shaft.

4. Install:

• Sheave drum

NOTE:

While turning the sheave drum, fit the

sheave drum shaft slot into the spiral spring

hook, and then place the sheave drum shaft

into the starter case boss.

5. Install:

• Return spring

• Drive pawl

NOTE:

Hook the end of the return spring onto the

drive pawl, and check to see that the drive

pawl returns smoothly.
