• Turn the seat w carrier adapter upside down slide out the locking pin 6c to release the keys 6d now the carrier adapter 6 can be removed by flipping it up and then unhinging it at the end pic 2 3 p.17
• Release keys separate the seat adapter p.17
• Caress w carrier adapter p.17
• Caress w carrier adapter p.18
• Unlocked locked p.18
• Unlock the carrier adapter with the supplied keys p.18
• The key 6d needs to be inserted in the lock 6b and turned 360 degrees counterclockwise before removing it p.18
• Caress w carrier adapter p.19
• Unscrew the carrier adapter p.19
• Screw the claws outward by turning the knob 6a counterclockwise untill the claws fit around the luggage carrier the knob needs to be pushed in while turning p.19
• Pic 1 pic 2 p.20
• Lay the seat 1 with the front side down hold the carrier adapter 6 in the same position as pic 1 and hinge it on like in pic 2 p.20
• Connect the seat adapter p.20
• Caress w carrier adapter p.20
• Slide in the locking pin 6c in its track make sure the end is pointing upwards for it to fit correctly when fastened the locking pin should not be able to move p.21
• Slide in the locking pin p.21
• Caress w carrier adapter p.21
• Position the seat 1 as much towards the front as possible while still leaving room for reclining the seat make sure the centre of gravity mark 9 is less than 10 cm behind the rear hub p.22
• Place the seat on the luggage carrier p.22
• Caress w carrier adapter p.22
• Fasten the seat on the luggage carrier p.23
• Fix the seat to the luggage carrier by pushing in and turning the knob 6a clockwise until the claws grasp the side tubes of the luggage carrier tighten hard enough to fix the seat securely and prevent it from sliding make it a rule to check this before starting a trip with the bike p.23
• Caress w carrier adapter p.23
• Caress w carrier adapter p.24
• Push in the lock pin 6b on the end of the knob 6a the knob is now locked and can be unlocked with the supplied keys 6d p.24
• Lock the carrier adapter p.24
• The additional security strap needs to be secured to the frame or seat post lead the security strap 6e through the holes as shown in pic 1 2 then pull at the end to tighten it if needed the length of the strap can be adjusted p.25
• Fasten the additional security strap p.25
• Caress w carrier adapter p.25
• How to release the foot rest 5 release the footrest handle on the back by flipping it upwards move the foot rest 5 to the preferred height and fasten the foot rest by pressing the foot rest handle down p.26
• Foot rest adjustment p.26
• Caress w carrier adapter p.26
• How to fasten release the foot strap a to fasten the foot strap put the strap into the track and pull down to preferred length the strap will automatically lock it s only possible to tighten the strap when it is in the track to loosen the foot strap just pull it out of the track p.27
• Foot strap adjustment p.27
• Caress w carrier adapter p.27
• To mount the extra footguard 8 press the footguard into the fitting grooves until it clicks p.28
• Opposite view p.28
• Extra footguard p.28
• Caress w carrier adapter p.28
• Caress w carrier adapter p.29
• Where to push p.29

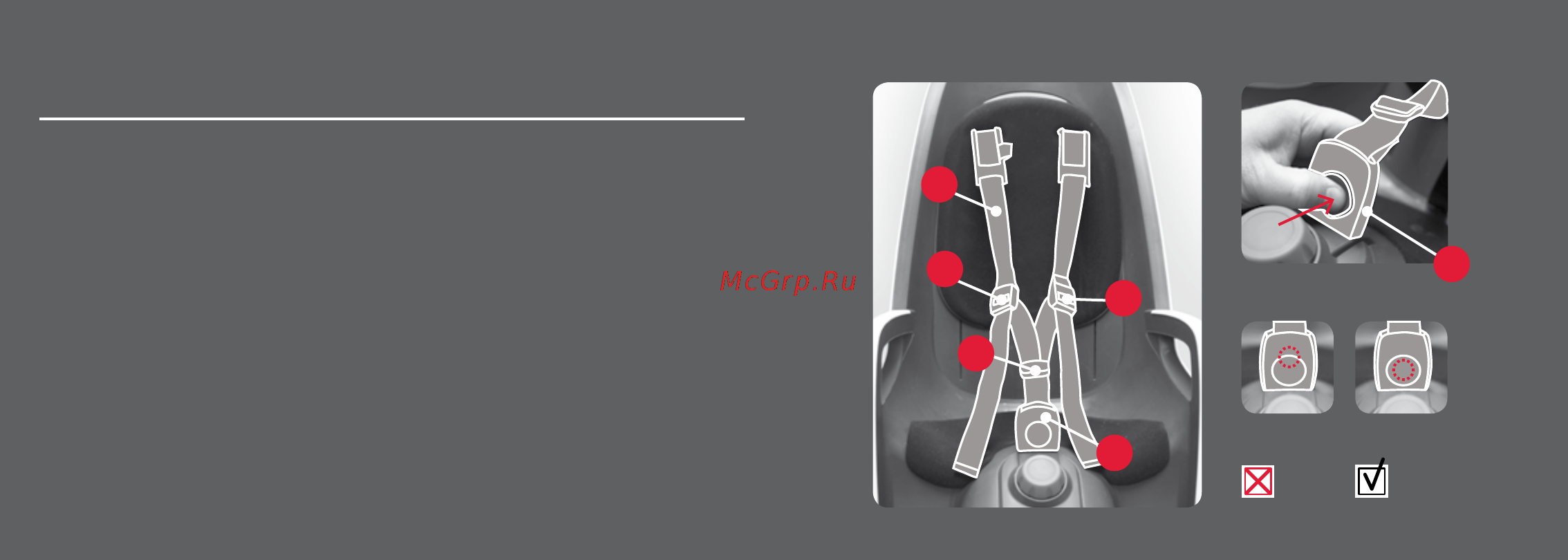

• The restraint system 2 can be attached and detached by pressing in or out the buckle 4 shown in pic 1 it is important to press at the middle of the buckle button pic 2 3 when detaching the restraint system the buckle button needs an adult force to open this is for the safety of the child so they cannot open it p.29
• Restraint system p.29
• Pic 2 pic 3 p.29
• The restraint system length can be adjusted by adjusting buckle a and b to adjust buckles a b hold the buckle as shown in pic 1 by pressing the red button the belt loosens by pulling the buckle upwards to tighten the restraint system just pull end of the belt straps pic 2 move the buckle c up to secure the belt so it cannot fall down from the child s shoulders pic 3 p.30
• Chest buckle adjustment p.30
• Caress w carrier adapter p.30
• The sliding backrest 3 height can be adjusted so the backrest and restraint system is in the correct height to the child s shoulders move backrest to preferred height and fasten by pressing the lever down pic 1 p.32
• Sliding backrest p.32
• Caress w carrier adapter p.32
• To recline the seat twist the reclining knob 7 to the position required p.33
• Reclinable function p.33
• Caress w carrier adapter p.33
• Caress w carrier adapter p.34
• Before embarking on a bicycle trip p.34
• Adjust the restraint system 2 adjust the foot rests 5 and fasten foot straps check if the carrier adapter 6 still is secured well and does not slide always wear helmets both child and adult p.34
• Nb never leave your child alone in the bicycle child seat please note that the kick stand is not a suitable support to hold the bicycle with a child in the seat p.34
• The carrier adapter for luggage carrier mounting can be taken off the caress seat and can be replaced by a carrier bow to do this you need to take the seat of the carrier adapter unlock the lock 6b pic 1 and unscrew the knob 6a by pushing it in and turning counterclockwise until the seat is loose enough to take off pic 2 p.36
• How to remove the carrier adapter p.36
• Caress w carrier adapter p.36
• Turn the seat 1 upside down press both snap fingers on the locking pin 6c and slide it out pic 1 now the carrier adapter 6 can be removed by flipping it up and then unhinging it at the end pic 2 3 p.38
• How to remove the carrier adapter p.38
• Caress w carrier adapter p.38
• Mount the carrier bar to the seat insert the carrier bow through the holes lengthwise under the seat base insert a carrier bow locking pin note that this is a different part than the carrier adapter locking pin through the holes under the seat base keeping it in unlocked position to allow final adjustment insert the carrier bow into the fastening bracket on the bicycle and adjust the correct lengthwise position max 10 cm between the centre mark on the seat and the rear hub after adjustment lock the seat by turning the eccentric shaft locking pin to locked position p.39
• For detailed instructions and illustrations to each step please see our website www hamax com p.39
• Changing to a carrier bow p.39
• Caress w carrier adapter p.39
