23D-Link DIR-412 User Manual
Section 3 - Configuration

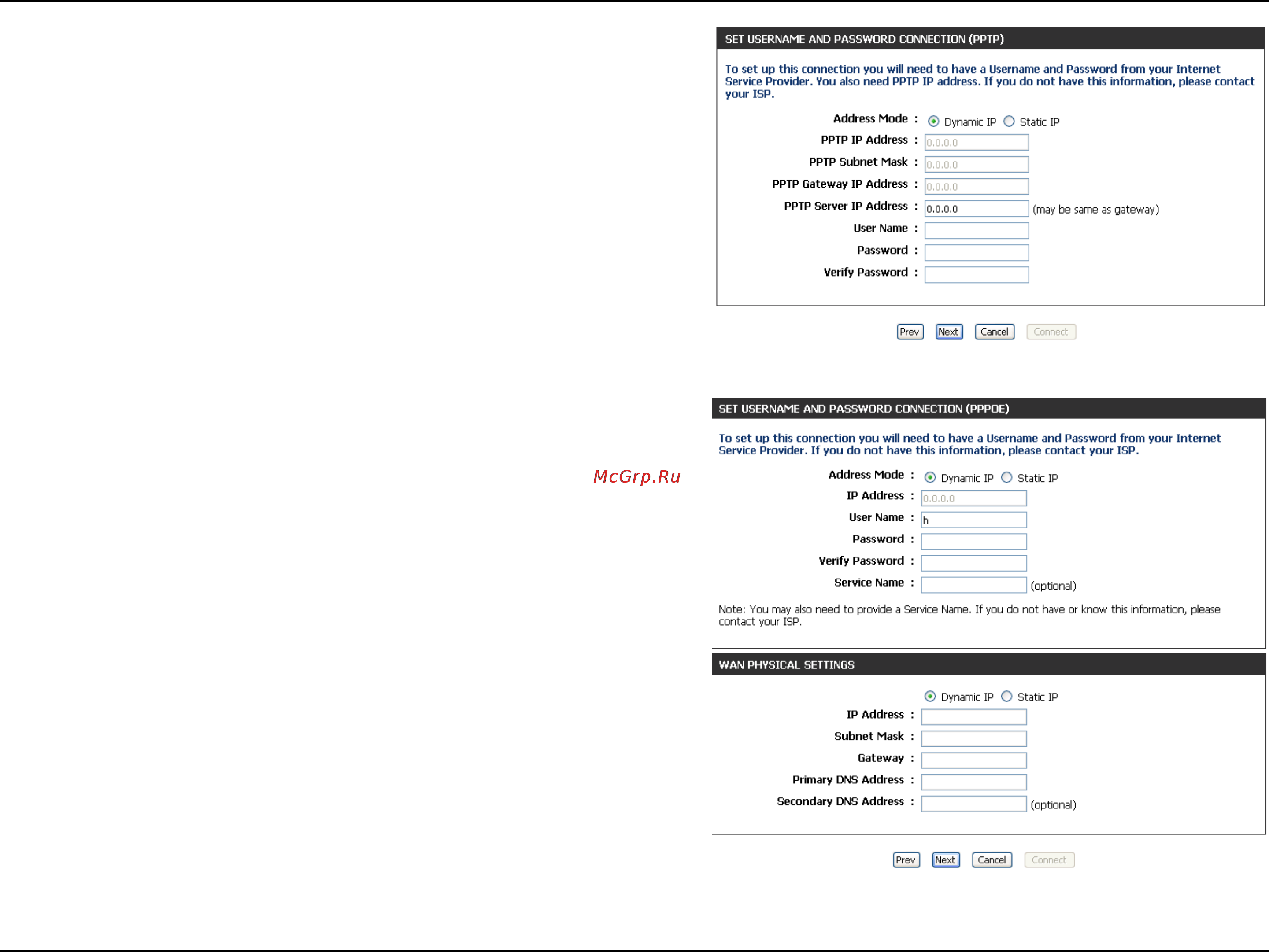

Russia PPTP (dual mode) and Russia PPPoE
(dual mode) are specically for Russian users.
Please ll in the username and password given by
Russia ISPs and click Next to continue.
Other users may ignore these 2 settings.
