24D-Link DIR-412 User Manual
Section 3 - Configuration
Click Connect to save your settings and reboot the
router. Please allow 1-2 minutes to connect.

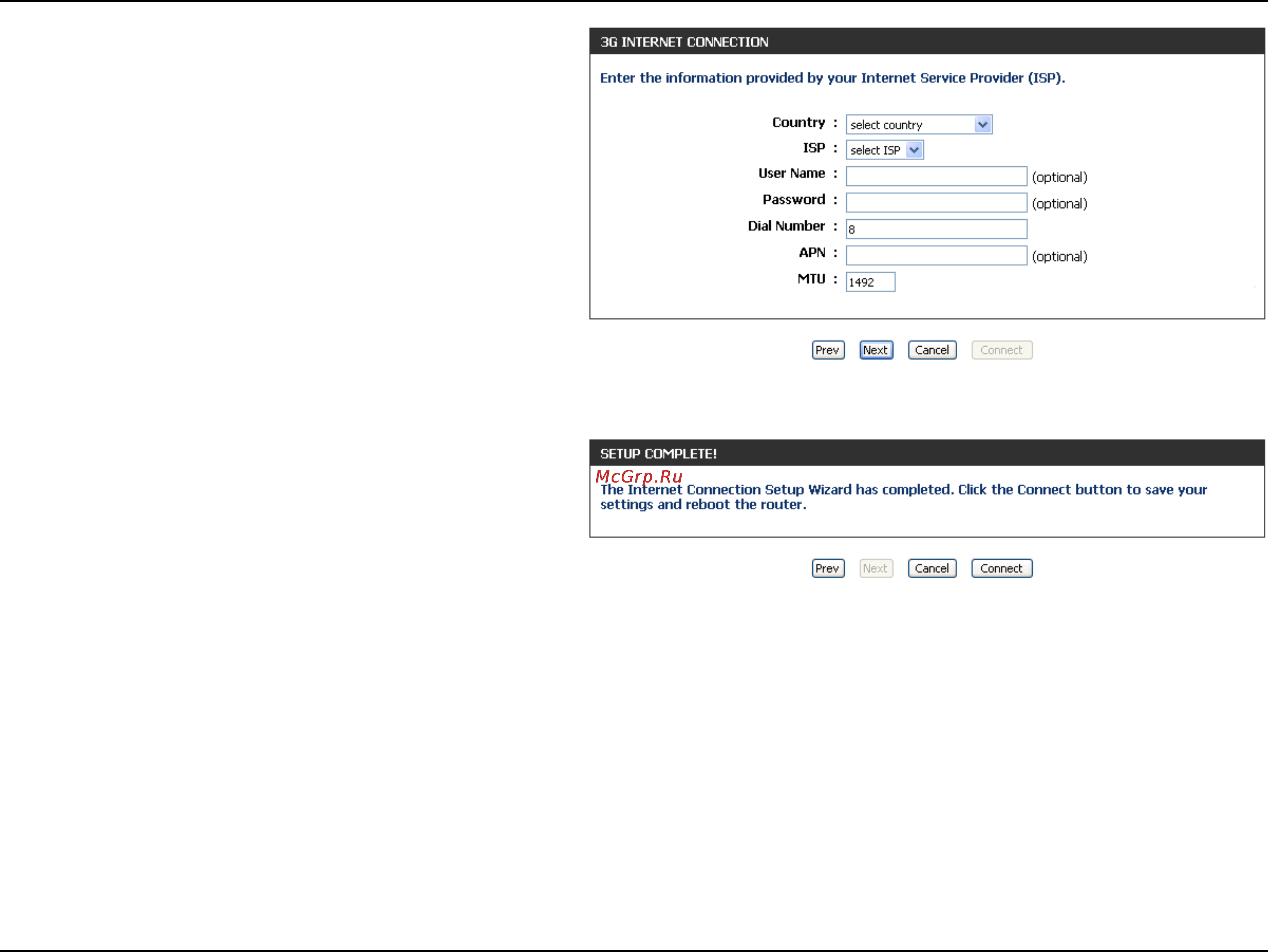

If you left the Skip 3G Conguration checkbox
unchecked in Step 3 of the Internet Connection
Setup Wizard, the following window appears:
Configure the parameters for your 3G Internet
Connection and click next to Continue.
