4. A Primary VLAN can be associated with multi-Secondary VLANs to create multi-Private

VLANs.

 Private VLAN Implementation

To hide Secondary VLANs from uplink devices and save VLAN resources, Private VLAN

containing one Primary VLAN and one Secondary VLAN requires the following characteristics:

 Packets from different Secondary VLANs can be forwarded to the uplink device via

promiscuous port and carry no corresponding Secondary VLAN information.

 Packets from Primary VLANs can be sent to end users via host port and carry no Primary

VLAN information.

Private VLAN functions are implemented on the PVLAN Config and Port Config pages.

7.9.1 PVLAN Config

On this page, you can create Private VLAN and view the information of the current defined Private

VLANs.

Choose the menu VLAN→Private VLAN→PVLAN Config to load the following page.

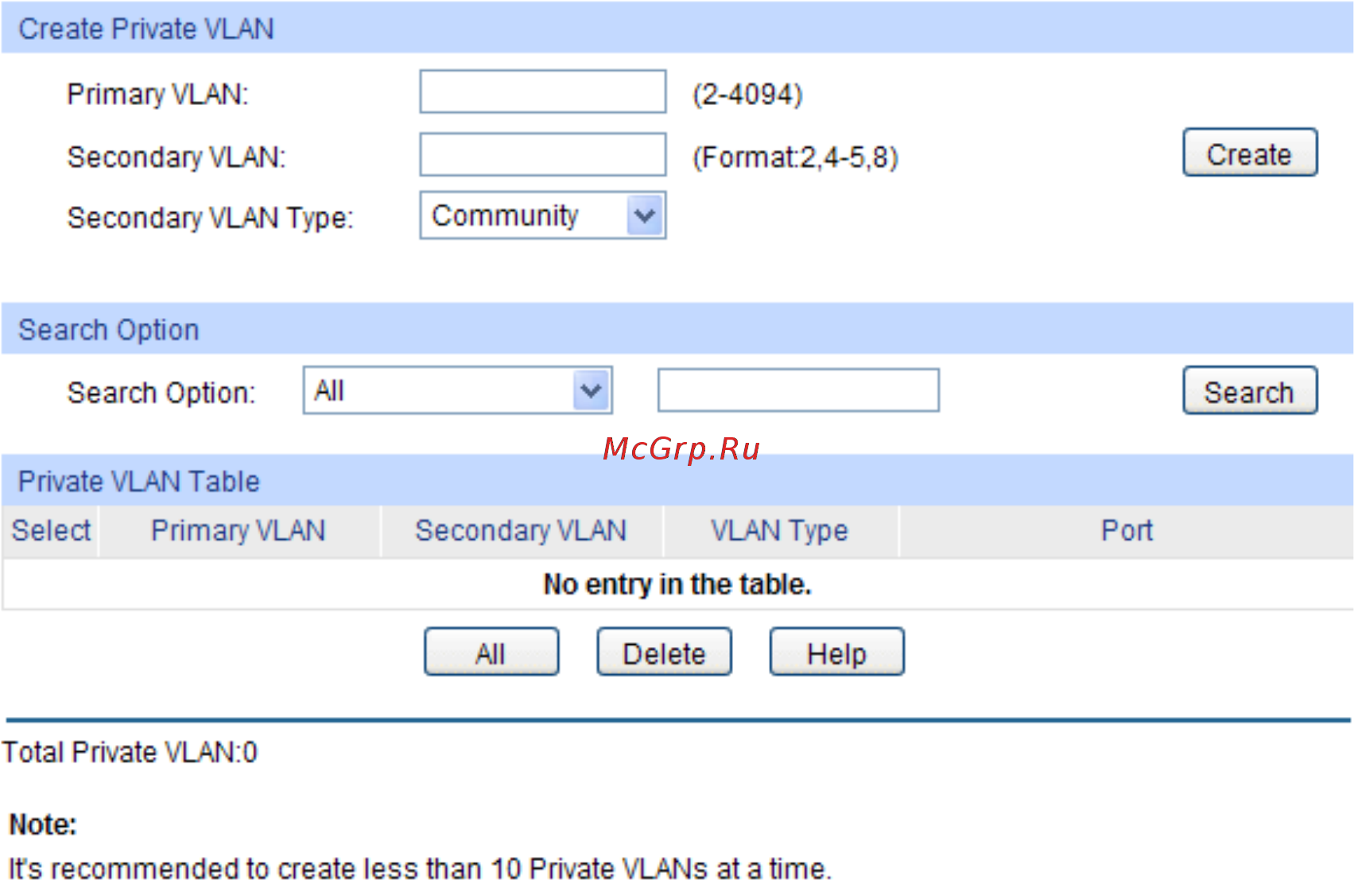

Figure 7-17 Create Private VLAN

The following entries are displayed on this screen:



Create Private VLAN

Primary VLAN:

Enter the ID number of the Primary VLAN.

Secondary VLAN:

Enter the ID number of the Secondary VLAN.
