202
Dead Interval:
The dead interval for the specified interface in seconds. This
specifies how long a router will wait to see a neighbor router's
Hello packets before declaring that the router is down. This
parameter must be the same for all routers atta
ched to a
network. The valid value ranges from 1 to 65535 seconds and
the default is 40.
Transmit Delay:
The Transit Delay for the specified interface. This specifies the
estimated number of seconds it takes to transmit a link state
update packet over the
selected interface. The valid value
ranges from 1 to 65535 seconds and the default is 1 second.
Authentication
Type:
You may select an authentication type other than none by
clicking on the 'Authentication Type' button. The choices are:
default: Uses the
authentication type of the backbone
area.
null: No authentication.
simple: Uses simple password.
md5: Uses md5 message-digest algorithm.
Authentication Key: Displays the active authentication key of the interface.
Authentication Key
ID:
Displays the active authentication key ID of the interface.
State:
Displays the current state of the selected router interface. One
of:
Down: This is the initial interface state. In this state, the
lower-
level protocols have indicated that the interface is
unusable. In t
his state, interface parameters will be set to
their initial values. All interface timers will be disabled, and
there will be no adjacencies associated with the interface.
P2P: In this state, the interface is operational, and
connects either to a physical point-to-
point network or to a
virtual link. Upon entering this state, the router attempts to
form an adjacency with the neighboring router. Hello
Packets are sent to the neighbor every HelloInterval
seconds.
10.9.8 Route Redistribution
Choose the menu RoutingOSPF→Route Redistribution to load the following page.

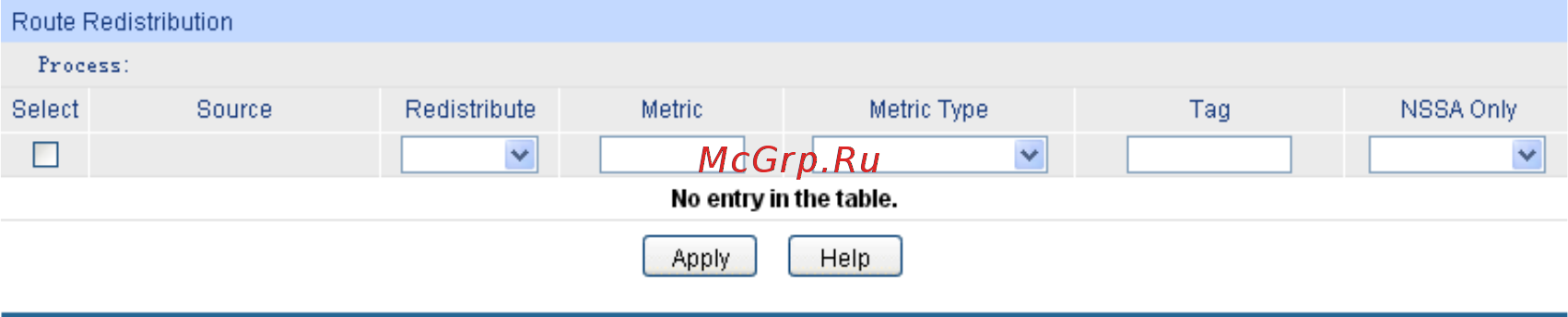

Figure10-53 Route Redistribution
The following entries are displayed on this screen:
Route Redistribution
Process: Select one OSPF Process to display its route redistribution list.
Select: Select the desired item for configuration. It is multi-optional.
