The following entries are displayed on this screen:



VLAN Info

VLAN ID: Enter the ID number of VLAN.

Name: Displays the user-defined name of VLAN.

Untagged port: Displays the untagged port which is ACCESS, TRUNK

GENERAL.

UNIT: Select the unit ID of the desired member in the stack.

Tagged port: Displays the tagged port which is TRUNK or GENERAL.

7.1.2 Port Config

Before creating the 802.1Q VLAN, please acquaint yourself with all the devices connected to the

switch in order to configure the ports properly.

Choose the menu VLAN→802.1Q VLAN→Port Config to load the following page.

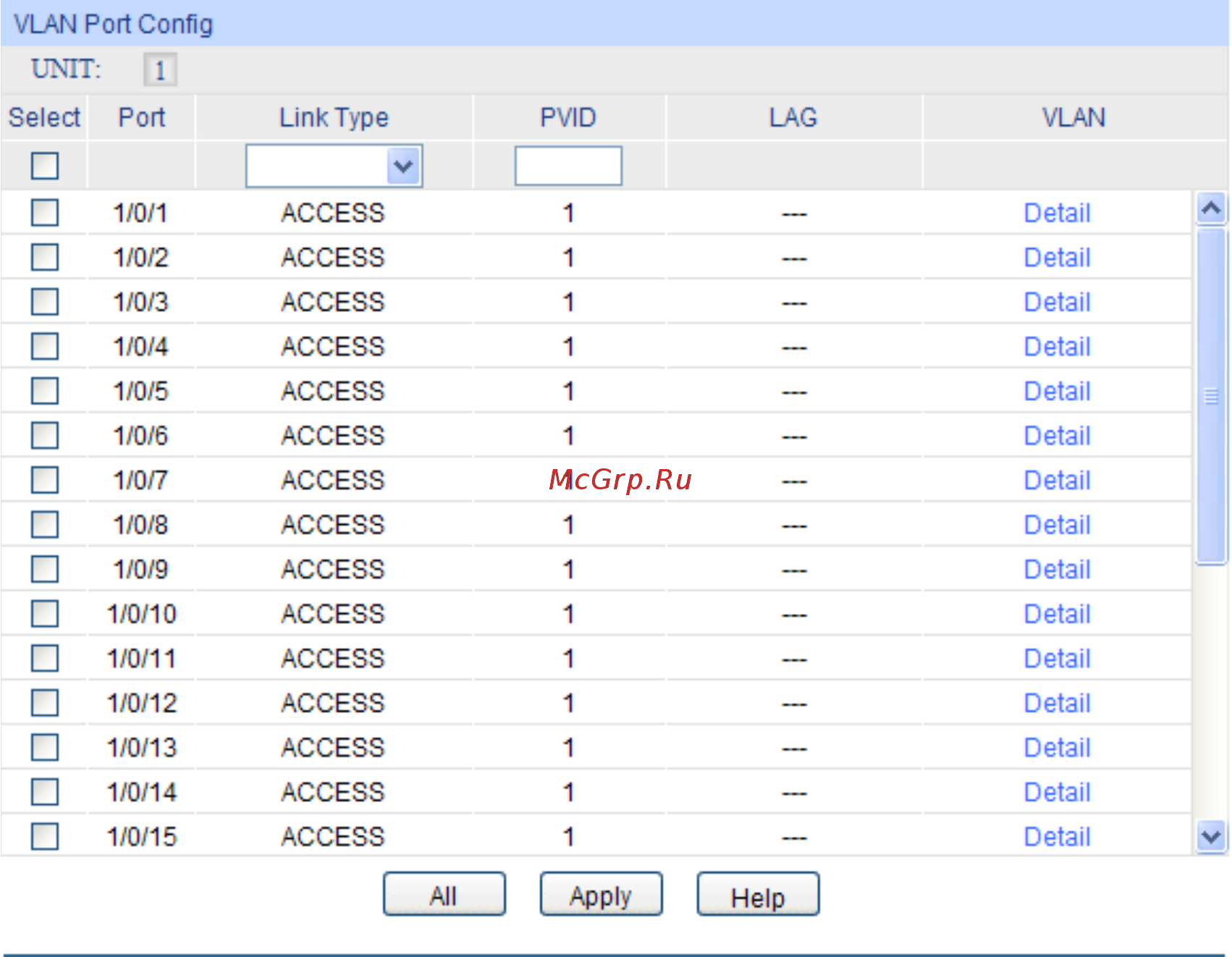

Figure 7-5 802.1Q VLAN – Port Config

The following entries are displayed on this screen:



VLAN Port Config

UNIT:

Select the unit ID of the desired member in the stack.

Select:

Select the desired port for configuration. It is multi-optional.

Port:

Displays the port number.
